By subtracting mostly DHARD_Y, CHARD_P, SRCL and beam jitter, we can get some additional improvement in the low frequency noise.

Not sure if I turned "OFF" the 2nd Loop the correct way.  On the 2nd Loop Screen, I would toggle the 2nd Loop via H1:PSL-ISS_SECONDLOOP_CLOSED (on right of screen), but I'm thinking I should have been toggling H1:PSL-ISS_SECONDLOOP_ENABLE (middle of 2nd loop screen) instead.

Noting here for future reference... (and tagging OpsInfo)

The "cleanest" way we have to engage/disengage the secondloop is with the IMC_LOCK guardian. In the LOCKED state, the IMC is locked and the secondloop is OFF. When the ISS_ON state is requested, the guardian moves to CLOSE_ISS (which actually does the process of engaging the secondloop), and then to ISS_ON, where the secondloop is considered to be ON. The secondloop can be turned off again by requesting the LOCKED state, where the guardian will move through OPEN_ISS.

1371541886 I can see no LSC or ASC instabilities before lockloss. The lock was not "FAST" (>30ms) as classified in G2201762 and lockloss was upstream of IMC as the IMC stayed locked for 0.3s after light fell off AS_A, see attached.

A variety of range metrics are attached comparing O4 performance to O3. (The times used for the sensitivity curves here are not the same as for the wall plot.)

Hanford's comoving volume sensitivity (proportional to its ideal detection rate) is now 1.8 times larger for systems below about 40 solar masses total. The volume increase for 1000 solar mass IMBH binaries is more than 4.

Also uploaded to the DCC: https://dcc.ligo.org/T2300239

This usually doesn't work without adjusting the input offset. Also, you would want to test this with the IMC alone, since the AC-coupling is finicky. On the other hand, changing the gain after the servo is engaged is trivial.

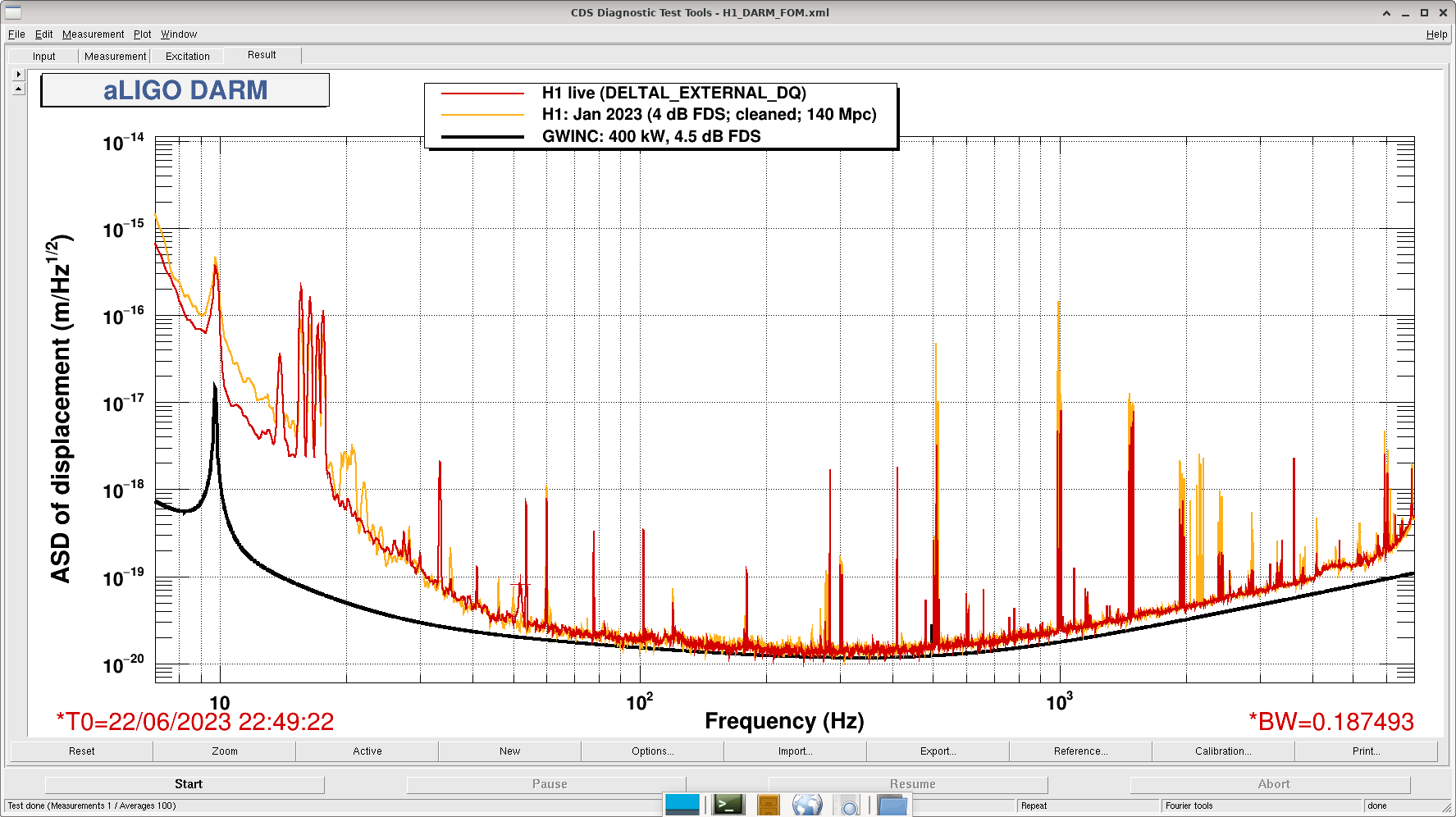

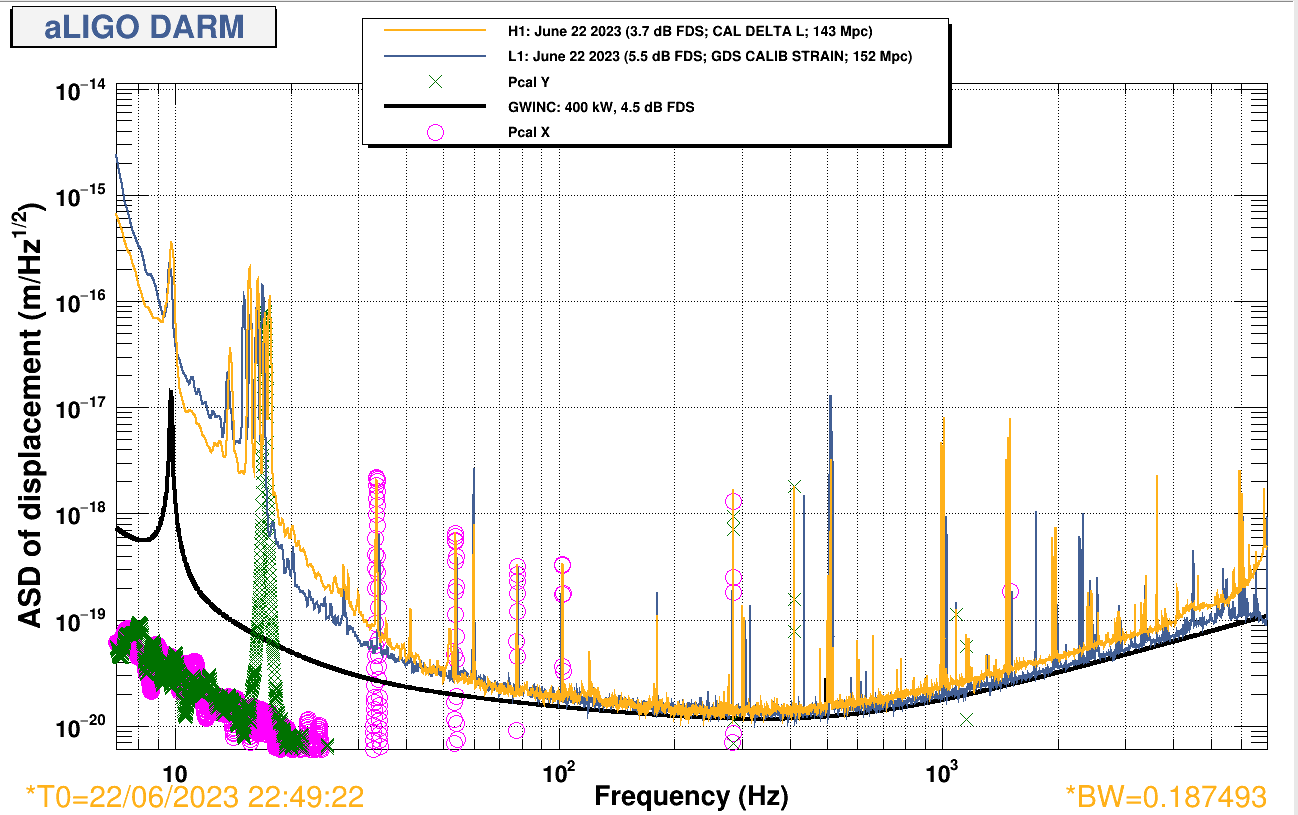

I'm thinking that this lower range is related to the squeezer. I've attached a screenshot fo the FDS DARM FOM where the live trace is above the refernece in the same frequencies that DARM seems to be higher than normal. I followed the instructions on the Troubleshooting SQZ wiki to adjust the sqeeze angle, but I wasn't able to make anything better, only worse.

I adjusted the sqz angle from 0630-0640 UTC.

Our range is staying low at ~125Mpc, there seems to be extra noise from 20-60Hz. Investigating.

There's a lot more coherence of PRCL and SRCL in the ongoing lock than the previous one. The thermalization cal lines are also very high in DARM and CHARD - maybe they weren't turned on until this new lock though.

Tagging CAL regarding the turn on of CAL_AWG_LINES for this 60W lock stretch -- thanks TJ!

Tagging DetChar as well -- to note that we have 8 extra calibrations on during this nominal low noise stretch that started at June 22 2023 05:04 UTC

These are in because we want to characterize the thermalization of the detector's DARM loop sensing and response functions now that we're operating at 60W rather than 75/76W. I hope to get a few more of these lock acquisitions with these extra lines on, and then we'll turn them off as we had done for the start of the engineering run.

If you'd like to create a data quality flag, you can find the status of these lines "in one go" by looking at the CAL_AWG_LINES guardian state channel,
    H1:GRD-CAL_AWG_LINES_STATE_N
The numerical value of the channel is 10.0 when the extra calibration lines are ON (the state is called LINES_ON), and 2.0 when the lines are OFF (the state is called IDLE). See CAL_AWG_LINES_StateGraph for the flow of the state graph.

A retrospect on the lower range:

The solution was a lack of capturing the SRCLFF1 gain in SDF / Guardian during yesterday's power reduction from 75W to 60W LHO:70648.

See LHO:70712 and LHO:70710 where Tony recovered the correct gain of 2.1.

@DetChar -- it might be worth creating a data quality flag for this:
    Observation segment start (with SRCLFF1 Gain at 1.0):
    2023-06-22 05:04:38 UTC
               22:04:38 PDT
               1371445496 GPS
    Observation segment stop (with SRCLFF1 Gain at 1.0):
    2023-06-22 13:53:47 UTC
               06:53:47 PDT
               1371477245 GPS

RyanC just added the SRCLFF1 gain of 2.1 to lscparams, saved, and reloaded the ISC_LOCK guardian.  So, if we need to relock it'll come back on with the correct gain.  Note though, that we expect to update this yet again later today.

Here's that SDF screenshot that I said I was going to attach. Turns out my tired brain had flipped setpoint and epics value in the tables, Doh! My fault.

Adding a quick comment to Jeff's note about lines, with a bit of relevant info from ER15.

Abby Wang and Athena Baches recently analyzed lines in May 2023 data, grouping those that evolve similarly in time. They found a cluster of lines corresponding to the awg lines, but not including any other entries. This is good news; it implies that there are *not* strong narrow artifacts with very similar histories-- i.e. these lines aren't causing unexpected strong lines elsewhere, which ought to have shown up in the same cluster. (Note: it's still possible that there are weak artifacts which aren't caught by this analysis.)

The attached plots show what the time evolution looks: each row is a line (corresponding to 11.475, 11.575, 15.175, 15.275, 24.4, and 24.5 Hz) , yellow = above threshold and blue = below threshold.

The calibration update was pushed based on the second -175 [ct] SRCL offset sensing function data taken in LHO:70683.

Even though there were no new measurements of the actuators taken, these the N/ct actuation strength "free" parameters were also updated with, essentially, a new MCMC run on the last, most recent, old data from May 17 2023 (LHO:69684).

Here're the following "free parameter" values exported to foton:
   $ pydarm export
       searching for 'last' report...
       found report: 20230621T211522Z
       using model from report: /ligo/groups/cal/H1/reports/20230621T211522Z/pydarm_H1_site.ini
       filter file: /opt/rtcds/lho/h1/chans/H1CALCS.txt

          Hc: 3.4207e+06 :: 1/Hc: 2.9234e-07
          Fcc: 439.33 Hz

          Hau:  7.5083e-08 N/ct
          Hap:  6.2353e-10 N/ct
          Hat:  9.5026e-13 N/ct

    filters (filter:bank | name:design string):
       CS_DARM_ERR:10                O4_Gain:zpk([], [], 2.9234e-07)
       CS_DARM_CFTD_ERR:10           O4_Gain:zpk([], [], 2.9234e-07)
       CS_DARM_ERR:9                O4_NoD2N:zpk([439.32644887584786], [7000], 1.0000e+00)
       CS_DARM_ANALOG_ETMX_L1:4      Npct_O4:zpk([], [], 7.5083e-08)
       CS_DARM_ANALOG_ETMX_L2:4      Npct_O4:zpk([], [], 6.2353e-10)
       CS_DARM_ANALOG_ETMX_L3:4      Npct_O4:zpk([], [], 9.5026e-13)

The calibration report on the MCMC fitting for free parameters, as well as the GPR fit based on the two measurements at -175 [ct] (20230621T211522Z in LHO:70683 and 20230621T191615Z in LHO:70671) is attached below for convenience, but has been archived on the LDAS cluster under
    H1_calibration_report_20230621T211522Z.pdf

For the primary metric of how the calibration's quality changed across the 75W to 60W, then change of SRCL offset change, the calibration push, see LHO:70705. I copy and past that attached image here for convenience.

Also repeating Louis:
The DTT template for this measurement is stored in
    /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O4/H1/Measurements/FullIFOSensingTFs/
        20230621_systematic_error_deltal_external_gds_calib_strain.xml

we changed is_pro_spring to False in the pyDARM parameter model set. Commit: 353de502.

Attached are the raw the blow-by-blow notes I took during yesterday's calibration push that highlights all the command-line commands and actions we needed to take in order to update the calibration.

Recapping here with a little more procedural clarity:
(Any command recalled without a path are/were/may be run any new, fresh terminal; we did not need to invoke any special conda environment thanks to the hard work done behind the scenes by the pydarm-cmd team):

    (0) If at all possible, understand what you expect to change in the calibration ahead of time.
        If that is *limited* to something changing that can only be measured with the full IFO,
        i.e. you expect *only* a change in the "free parameters" (overall sensing function gain,
        DARM cavity pole frequency, or any of the three ETMX UIM, PUM, TST actuator strengths)
        then you run through the process outlined below as we did yesterday. Other changes to the
        DARM loop, like electronics changes or computational arrangement mean you have to do a
        more in-depth characterization of that thing, update the DARM loop model parameter set,
        *then* start at (1).

    (1) Measure something new about the IFO. In this case we *knew* that we expect a change in
        the inteferometric response of the IFO because of the ring heater changes and input
        power change, so we remeasured the sensing function; and expected only the optical gain
        and the cavity pole to change.

        $ pydarm measure --run-headless bb sens pcal

        We, of course, should be out of observing, and the ISC_LOCK guardian should be in NLN_CAL_MEAS.
        When the measurement is complete, you can do steps (2) through (6) with the IFO *back*
        in NOMINAL_LOW_NOISE, and you can even go back in to OBSERVING during that time.

    (2) Process that measurement, and create the folder of material that's required for that
        processing, as though it were a part of the on-going "epoch" of measurements where
        you expect nothing to have changed about the DARM loop other than the time-dependent
        corrections to the free parameters. This gives you a "report" that shows the residuals
        between the last installed model of the IFO and you current measurement compared to
        the rest of the measurement/model residuals in the inventory for that last "epoch."
        In this way, you can confirm or refute your expectations of what has changed.

        $ pydarm report

        which generates the folder in
        /ligo/groups/cal/H1/reports/20230621T191615Z/

    (3) Looking at the first results, we were disappointed that occasionally the MCMC fit
        would land on a parameter hyperspace island that had a large SRC detuning spring
        frequencies, even through the lower frequency limit of the data fed into the fitter
        was ~80 Hz. As such, we adjusted the *default* model parameter set,

        /ligo/groups/cal/H1/ifo/pydarm_H1.ini
        changing the following parameter,
        Line 15    is_pro_spring = False
        and re-ran the report,
        $ pydarm report --force
        in order to re-run the MCMC. This worked so we committed pydarm_H1.ini to the
        ifo/H1/ repo as git hash 353de502.

    (4) After looking through the history of measurement/model residuals, you should
        then have an understanding what you want to *tag* as "valid" and an understanding
        of whether you new measurement *is* infact the boundary of a new epoch. This
        may also be the time when you *don't* like what you see, so you modify the
        controls settings of the IFO to change it further and go back to step (1). As you
        can see from LHO aLOGs 70671, 70677, and 70683,
        we were doing just that.

        In the end, we had *two* measurements in "the new epoch" that we liked, and one
        measurement in the middle -- technically its *own* epoch -- that we didn't like.

        So, after processing all the data and making no updates to the report tags so we
        could see the whole history of the sensing function, we tagged the reports in the
        following way

        $ cd /ligo/groups/cal/H1/reports/
        $ pydarm ls -r                  # before tagging
            20230620T234012Z valid          # Last valid 75W sensing function data set
            20230621T191615Z                # First new 60W data set, with SRCL offset -175 [ct]
            20230621T201733Z                # Second new 60W data set, with SRCL offset -165 [ct]
            20230621T211522Z                # Third new 60W data set, with SRCL offset -175 [ct]
        $ # validating First and Third 60W data sets, both with -175 [ct] SRCL offset the report so it shows up on the
        $ touch 20230621T191615Z/tags/valid
        $ touch 20230621T191615Z/tags/epoch-sensing
        $ touch 20230621T211522Z/tags/valid
        $ pydarm ls -r                  # after tagging
            20230620T234012Z valid
            20230621T191615Z valid epoch-sensing
            20230621T201733Z
            20230621T211522Z valid

    (5) Then, now that these tags are set up -- and specifically the epoch-sensing tag --
        only these new 60W data sets are included in the history, which means only
        those data sets are stacked and fit to GPR. Thus, this report generation run will
        be the "final" report that generates what we end up exporting out to the calibration
        pipeline. Importantly, even though the epoch boundary is defined by the the *first*
        20230621T191615Z measurement, the parameters that will be installed are defined by
        the MCMC of the *latest* 20230621T211522Z measurement. This works because we're
        assuming the IFO is the same in this entire boundary, so we should get equivalent
        answers (within uncertainty, and modulo time-dependent correction factors) if we MCMC
        any of the measurements in the epoch.

        $ pydarm report --force

        yields a good report, with "free parameters," foton exports, FIR filters, MCMC
        posteriors, and GPR fits that are ready to export to the calibration pipeline.

        Also note that all of these re-runs of the report ("pydarm report --force")
        are *over-writing* the contents of the report, so if you want to save any interim
        products you must move them out of the way to a different location and/or different name.

    (6) We can validate what we are about to push out into the world with the dry run command,

        $ pydarm export

        where if you don't specify the report ID, then it exports the latest report. In this case,
        the latest is 20230621T211522Z, so we do want to use this simplest use of this command.
        That spits out text like what's shown in LHO:70699.

        Another option is

        $ pydarm status

        which spits out a comparison between what's *actually* installed in the front-end against
        the latest report (which, in this case, is what we're *about* to install).

    (7) If you're happy with what you see, then it's time to shove "the calibration" out into the world.
        (a) Presumably, the IFO is still locked, in NOMINAL_LOW_NOISE, and maybe even in OBSERVING.
            Warn folks that you're about to take the IFO out of OBSERVING, and the DARM_FOM on the
            wall is about to go nuts, but the IFO is fine. Try to do steps (b) through (g) as quickly
            but accurately/completely/carefully as possible.

        (b) push EPICs records to the front end and save new foton files.
            $ pydarm export --push

        (c) open up the CAL-CS GDS-TP screen, and look at the DIFF of filter coefficients.
            Hit the LOAD_COEFFICIENTS button if you see what you expect from the DIFF.

        (d) on the same screen, open up the SDF OVERVIEW. Review the changes and accept if you see
            what you expect.

        Now everything's updated in the front-end, so it's time to migrate stuff out to the cluster
        so GDS and the uncertainty pipelines get updated.

        (e) Add an additional tag to the report which you just pushed,

        $ touch /ligo/groups/cal/H1/reports/20230621T211522Z/tags/exported
        $ pydarm ls -r
            20230620T234012Z valid
            20230621T191615Z valid epoch-sensing
            20230621T211522Z exported valid


        (f) Archive all the reports that are a part of this wonderful new epoch, which pushes the
            whole folder so it includes the tags. Having the "exported" tag is particularly
            important for the GDS pipeline.

            /ligo/groups/cal/H1/reports$ arx commit 20230621T191615Z
            /ligo/groups/cal/H1/reports$ arx commit 20230621T211522Z


        (g) Restart the gds pipeline, which picks up the .npz of filter coefficients from the latest
            report marked with the "exported" tag.

            $ pydarm gds restart


            This opens up prompts form both DMT machines, dmt1 and dmt2, to say "yes" to confirm that
            you want to restart.

            After restarting the GDS pipeline, you can check the status of the machines as well,

            $ pydarm gds status


    (8) Once you're done with the GDS pipeline restart, then you've gotta wait ~2-5 minutes for
        the pipeline to complete its restart. To check whether the pipeline is back up and running,
        head to "grafana" calibration monitoring page.
        Presumably, the IFO is still in NOMINAL_LOW_NOISE, so eventually the live measurement of
        response function systematic error should begin to reappear, hopefully even closer to
        1.0 mag, 0.0 deg phase. While you're waiting, you can also pull up trends of
            - the front-end computed TDCFs, see if those move closer to 1.0 (or in the case of f_cc, closer to the MCMC value)
            - the front-end computed DELTAL_EXTERNAL / PCAL systematic error transfer function, see if those move closer to 1.0
        In addition, the newest, latest *modeled* systematic error budget only gets triggered once
        every hour, so you just have to be patient on that one, and check in later.

    (9) Once everything is settled, take the ISC_LOCK guardian to NLN_CAL_MEAS, and take a broad-band
        PCAL injection for final, high-density frequency resolution, post-install validation a la LHO:70705
