IFO in NLN. Handing off to Ed. There have been diagnostic messages about input mirrors being out of nominal range. I have not attempted to correct these. There have been ongoing dust alarms. 23:17 UTC Handed off from Cheryl in NLN 23:44 UTC Lock loss. Noise eater in oscillation. 23:55 UTC back from resetting noise eater 00:27 UTC lock loss from LOWNOISE_ESD_ETMY 00:34 UTC Kiwamu and Nutsinee testing TCS 00:37 UTC Stopping at DMRI_LOCKED for Jenne 00:41 UTC Jenne done, moving on 01:02 UTC NLN 02:06 UTC Conlog test restart 02:13 UTC lock loss (Jeff K.) 02:43 UTC NLN 02:51 UTC Sheila to LVEA to plug in SR785 02:56 UTC Sheila back 03:35 UTC Jeff K. done measurements 03:53 UTC Sheila to LVEA 03:57 UTC Sheila back 04:02 UTC Lock loss. Tripped HAM6 ISI and SUS OMC. Earthquake. 04:07 UTC Pausing in DOWN for Sheila 04:50 UTC Relocking 05:22 UTC NLN 05:23 UTC damped PI mode 26 (changed phase to -60) 05:28 UTC lock loss (Jenne) 06:03 UTC lock loss 06:41 UTC NLN Terra damping mode 26

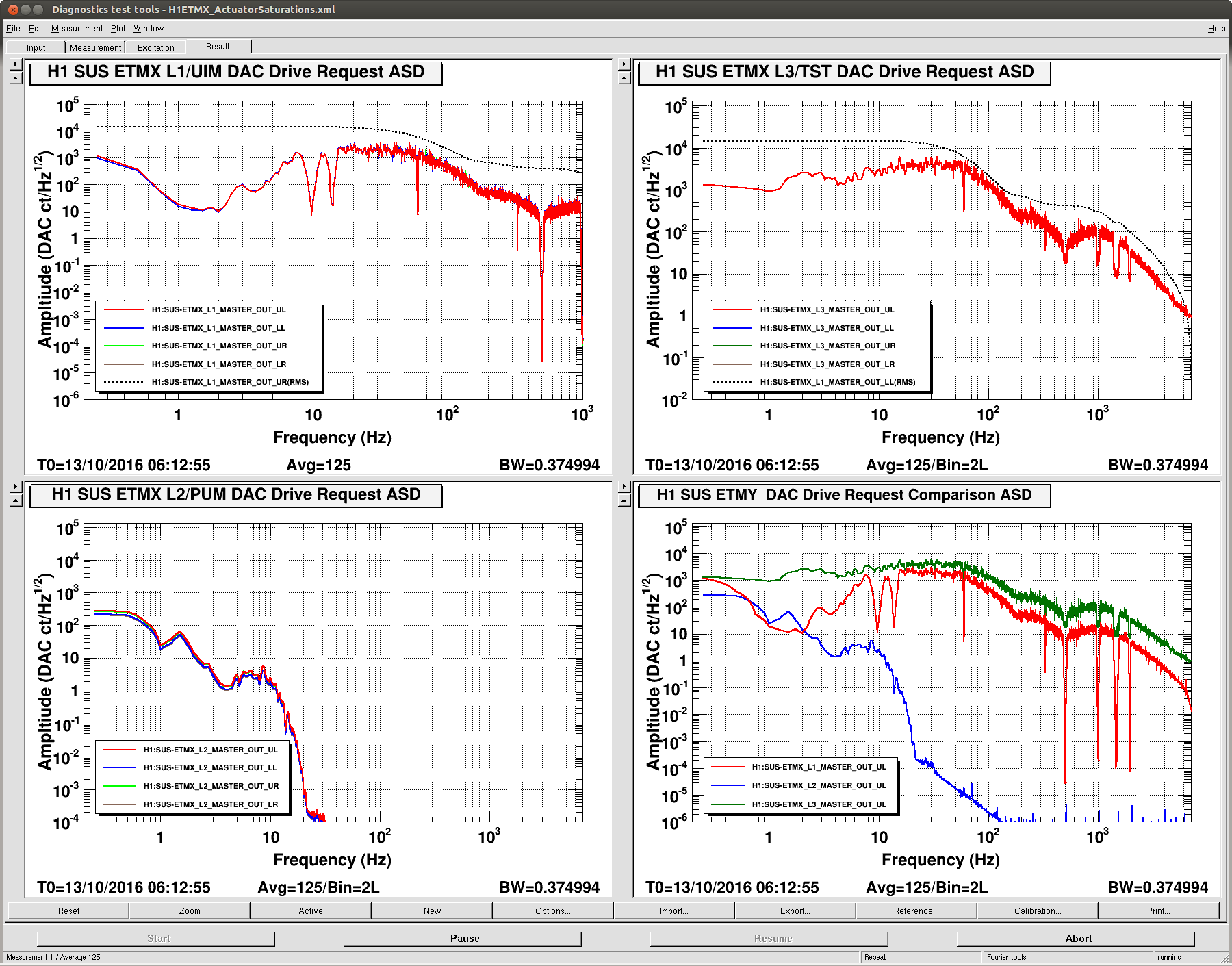

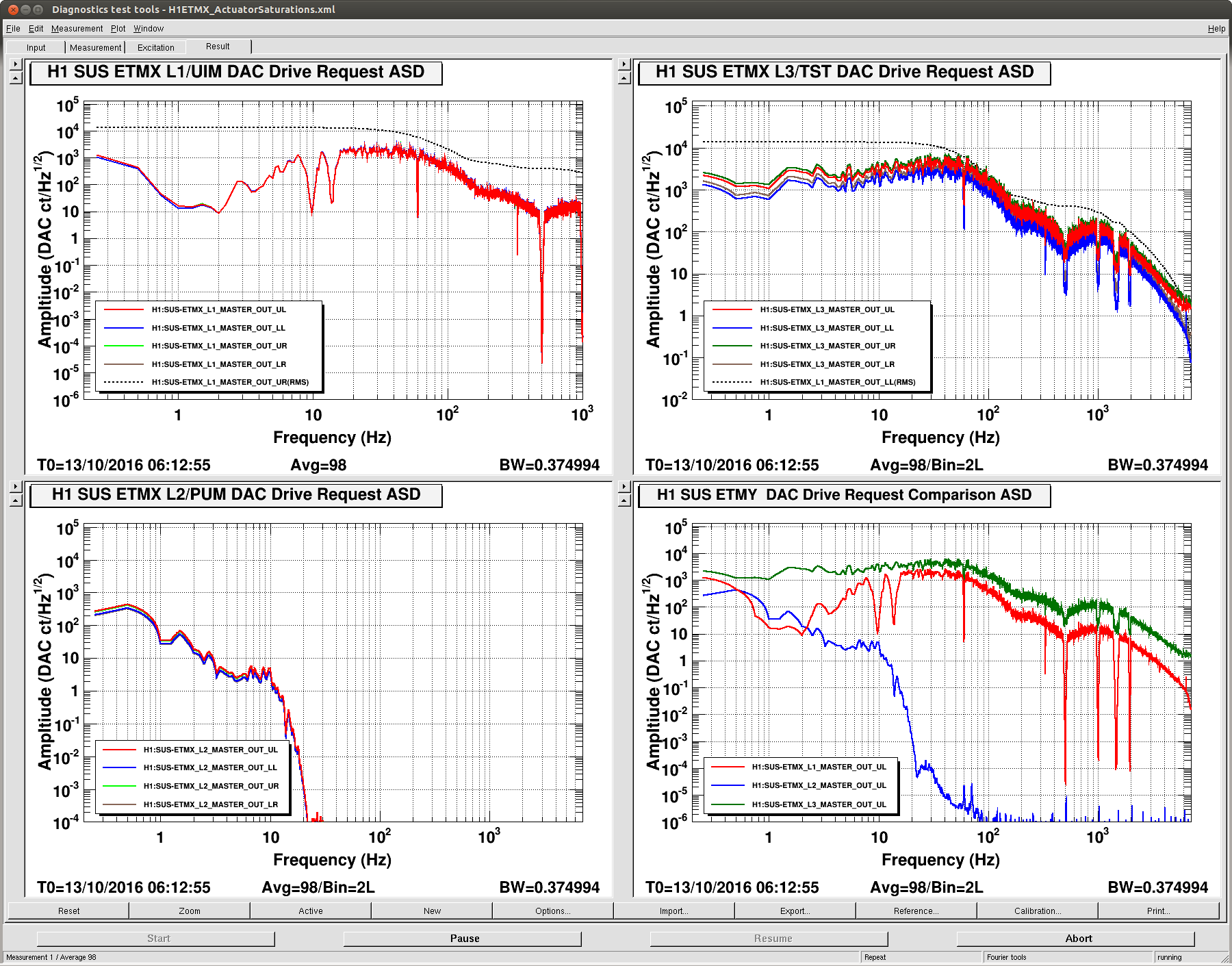

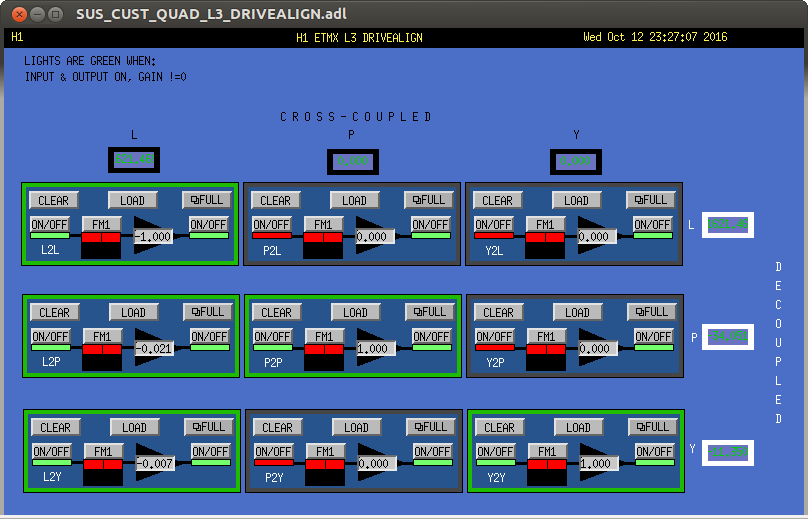

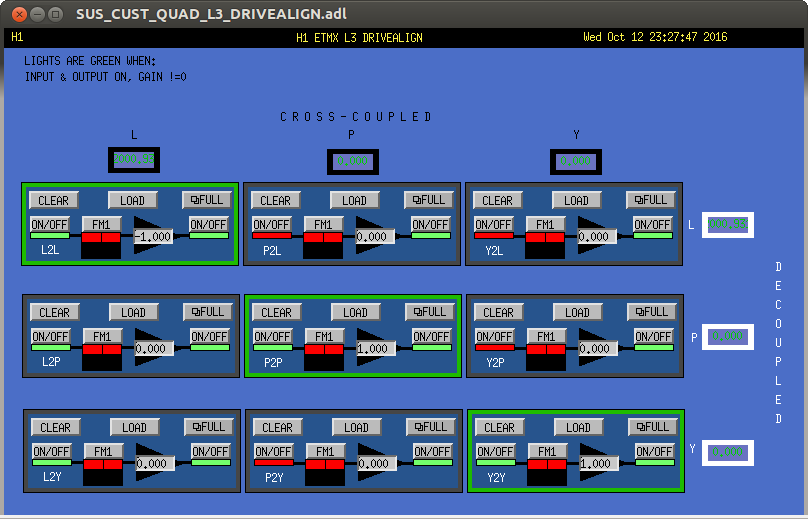

J. Kissel, J. Driggers, S. Dwyer Annoyed by the constant verbal alarms of SUS ETMX saturating while the arms are controlled by ALS, I took a spectra of the L3 / ESD output request. The spectra revealed two things: (1) We still should have plenty of head room, with the upper ESD quadrants requesting the largest drive, but that drive still only having an RMS of ~20e3 [ct], out of the 128e3 [ct] DAC range and being quite featureless. It makes no sense that we're constantly saturating. (2) The upper quadrants are receiving more drive than the lower quadrants, which was suspicious because we traditionally don't drive the ESD in angle. Upon further investigation, we reminded ourselves that there have been off-diagonal, L2A elements in ETMX's L3 / ESD DRIVEALIGN matrix since 2014 (LHO aLOG 15260). As a quick test, we reduced these elements to zero. It had two effects: (1) It *didn't* affect the ALS DIFF control at all, and we rode happily through the lock acquisition sequence, and (2) It reduced the drive a little bit, so the ESD quadrants saturated a little less. It still saturates pretty regularly though. As such, Jenne's accepted the removal of these elements in the SDF system, and removed the check for them from the DOWN state of the ISC_LOCK guardian. The other good news about this -- two fewer signs to keep track of when flipping the ESD bias sign on ETMX. I wish it would have cured the constant saturation problem though! EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX EX ...

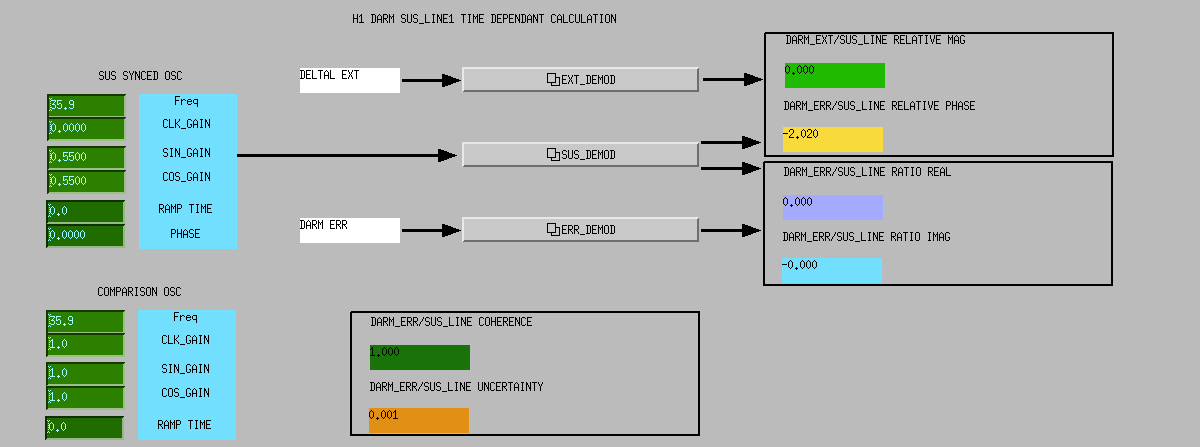

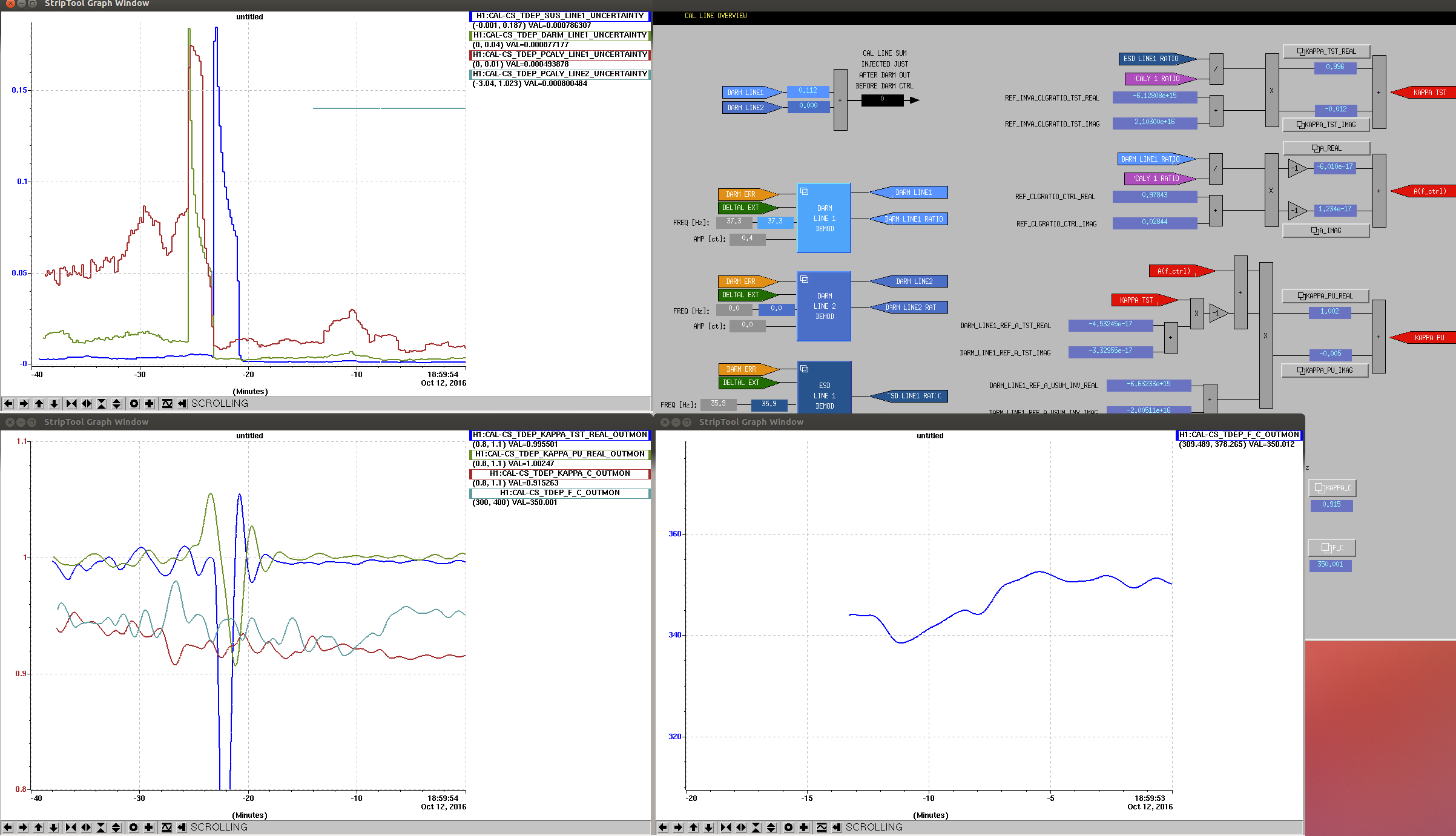

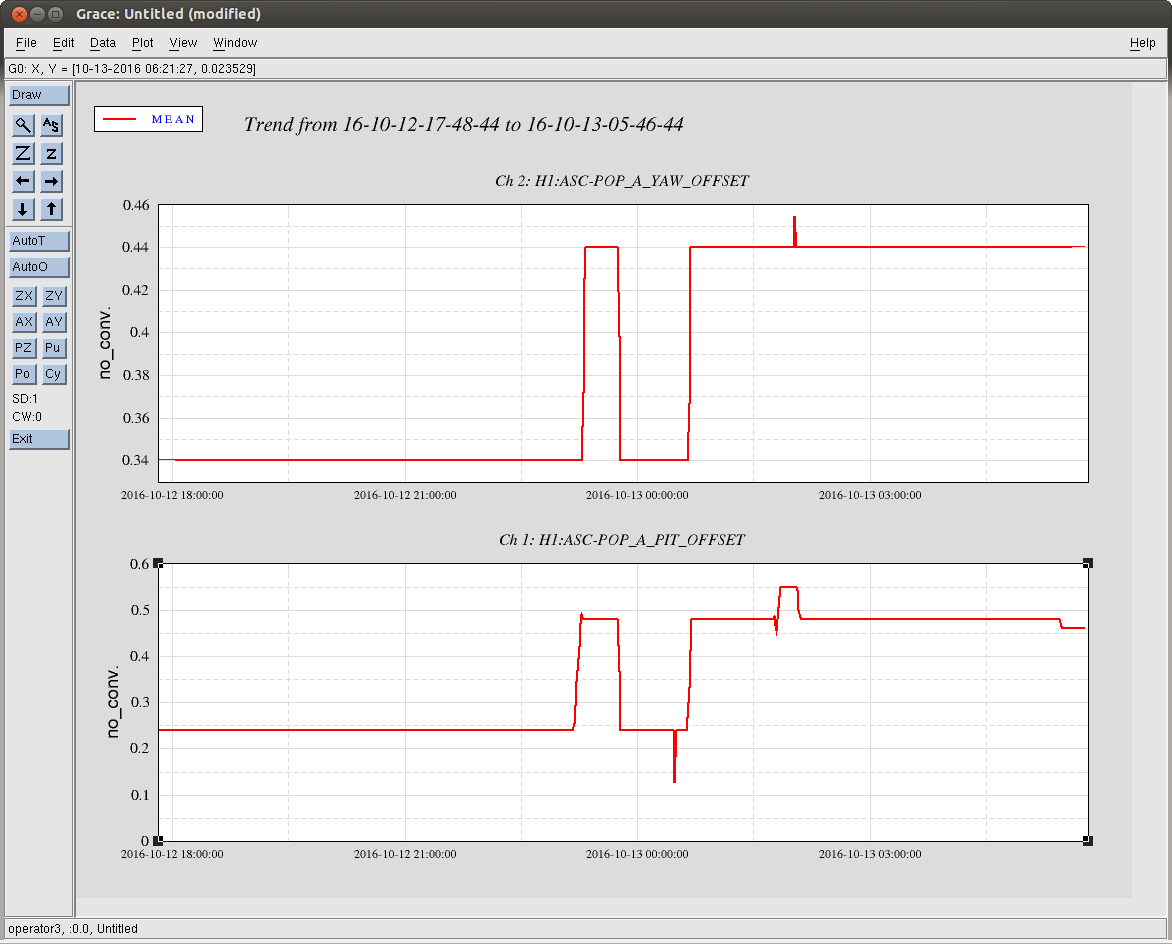

J. Kissel, J. Driggers While Darkhan was improving the SNR of the CAL lines (see LHO aLOG 30476), I noticed that the reported value for the darm coupled cavity pole frequency, f_{cc} -- newly calculated in the front-end -- was at ~345 Hz, where for the past two nights it's been measured by both calibration line front-end calculation and sweeps to be ~325 Hz (see LHO aLOGs 30391 and 30431). Indeed, the result was repeatable over several lock stretches tonight. I spoke with Jenne, and she mentioned that they've changed the POP A offsets (H1:ASC-POP_A_PIT_OFFSET and H1:ASC-POP_A_YAW_OFFSET, from 0.34 to 0.44 and 0.23 to 0.47, respectively) in order to push the improvement this has had on the power recycling gain even further. It worked -- and it apparently also had side benefits of increasing f_{cc}. To confirm (so that we finally can just trust the front end calculation and not have to take the sweep every time), I took one more set of calibration sweeps; a PCAL2DARM transfer function to obtain C / (1 + G), and a DARM open loop gain transfer function to obtain IN1/IN2 = G and EXC/IN2 = (1+G). The ratio of these measurements ( C/(1+G) * (1+G)) gets us direct measurement of C alone. Excellently, the sweep reveals that f_{c} has increased to 343 [Hz], the DARM optical gain went up, and there's even less SRC detuning. Sweet! Unfortunately, I naturally inquired if we can go further with this POP OFFSET knob, but Jenne says further pushing doesn't seem to have any more effect. Looks like we've spun as much out of this knob as we can. However, this does give me much greater confidence in the front-end calculations of f_{cc} and relative optical gain change, kappa_{C}. Lots more details and changes to come on the model comparison (2016-10-13_H1DARM_SensingFunction_Comparison.png) but I show it just so you can get a good feel for the changes. Note that the reference model (based on September measurements) are compensated for by the kappa_{C} and f_{cc} value take just after each sweep as measured by the calibration line. Also note that the comparisons use time delays from ER9, which -- while they make the sensing function and DARM open loop gain TF measurements match the model -- don't make sense with other timing measurements (LHO aLOG 29259). Details: Templates for sweeps line here: /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER10/H1/Measurements DARMOLGTFs/2016-10-13_H1_DARM_OLGTF_4to1200Hz_fasttemplate.xml PCAL/2016-10-13_H1_PCAL2DARMTF_4to1200Hz_fasttemplate.xml Note that these templates measure significantly faster because I've reduced the number of points, and reduced the cycle/measurement time per frequency point. Delightfully, I can still get great coherence down to 10 Hz for both templates. However, if we want to stay well-informed of SRC detuning, we should probably re-up the DARM OLG TF measurement/cycle time to regain great coherence.

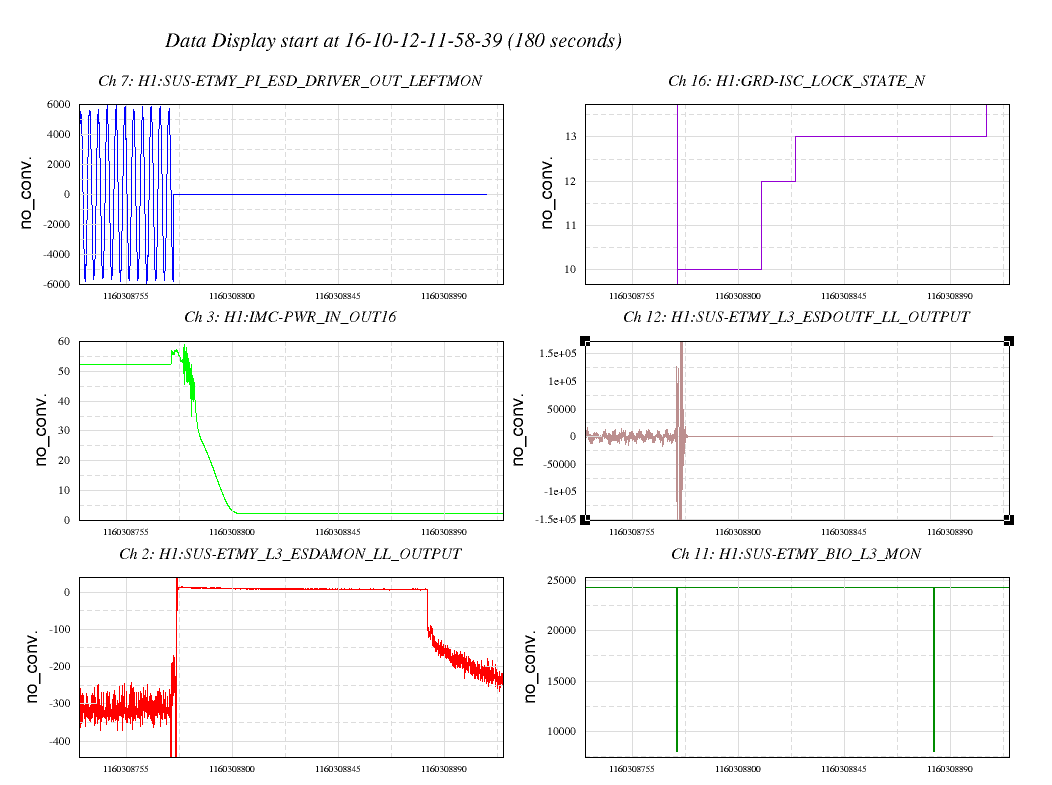

Trends for the ETMY ESD which switched off at 11:59 UTC this morning after being sent a large drive signal and immediately broke lock. Off and on switching is seen in ETMY_BIO_L3_MON and drive spike in ETMY_L3_ESDOUTF (LL quad only shown, but its seen in all). DIAG_MAIN reported driver off; it watches an ETMY HV ESDAMON DC_IN monitor. Seems to have turned back on 2 minutes later during LOCKING_ALS. Drive spike was not pushed through PI drive. PI Mode26 damping troubles were unrelated (discussed in later log).
J. Kissel, K. Izumi, D. Tuyenbayev,

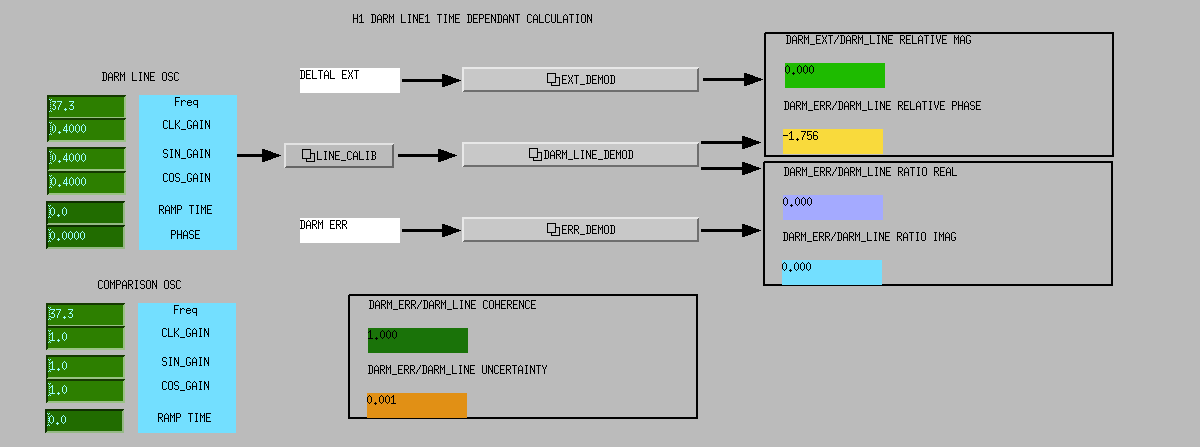

Since the noise floor of the IFO is currently higher compared to O1 levels (see attachment 1) the SNR of the calibrations lines are not sufficient to resolve the DARM time-dependent parameters with an under 1% uncertainty. We have increased the calibration line amplitudes.

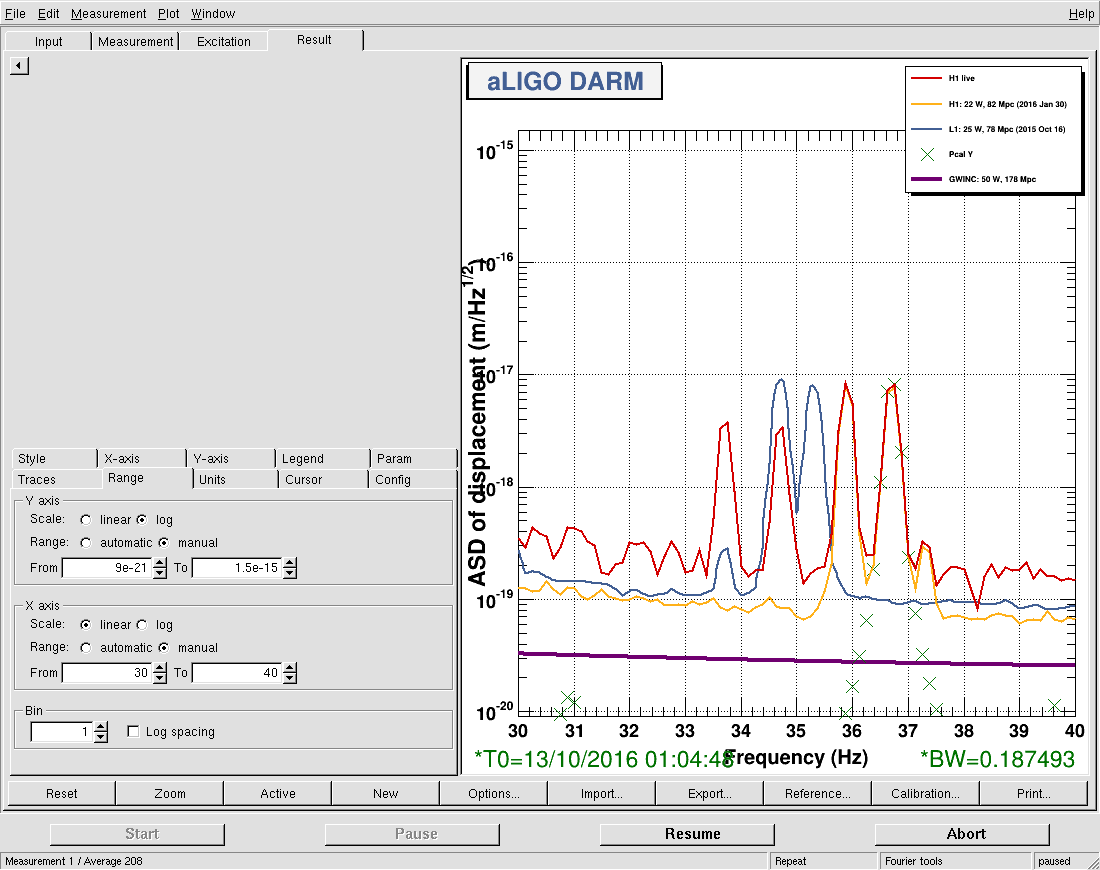

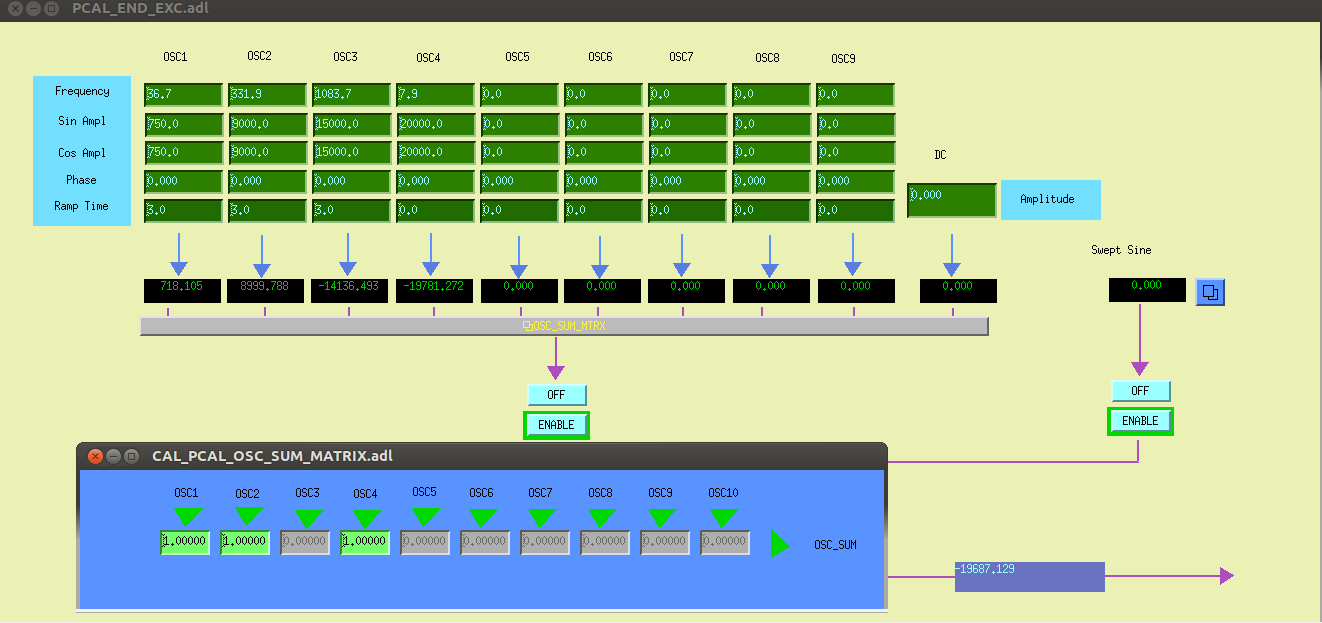

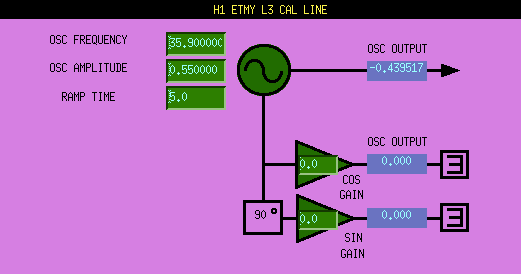

37.3 Hz x_ctrl, 35.9 Hz ESD and 36.7 Hz Pcal line amplitudes were increased by a factor of 5; and the 331.9 Hz Pcal line amplitude was increased by a factor of 3. To ensure that PcalY have enough drive range, we switched off the 1kHz line (the 7.9 Hz line which is using a major part of the drive range is still running).
Laser Status: SysStat is good
Front End Power is 34.78W (should be around 30 W)
Front End Watch is GREEN
HPO Watch is GREEN
PMC: It has been locked 0.0 days, 2.0 hr 12.0 minutes (should be days/weeks)
Reflected power is 34.32Watts and PowerSum = 135.1Watts.
FSS: It has been locked for 0.0 days 1.0 hr and 27.0 min (should be days/weeks)
TPD[V] = 3.682V (min 0.9V)
ISS: The diffracted power is around 4.339% (should be 5-9%)
Last saturation event was 0.0 days 1.0 hours and 27.0 minutes ago (should be days/weeks)
Possible Issues:
Dave, Kiwamu, Nutsinee
--------------------------------------------------------------------------------------------------------
Quick conclusion: It's probably related to the CO2Y rotation stage.

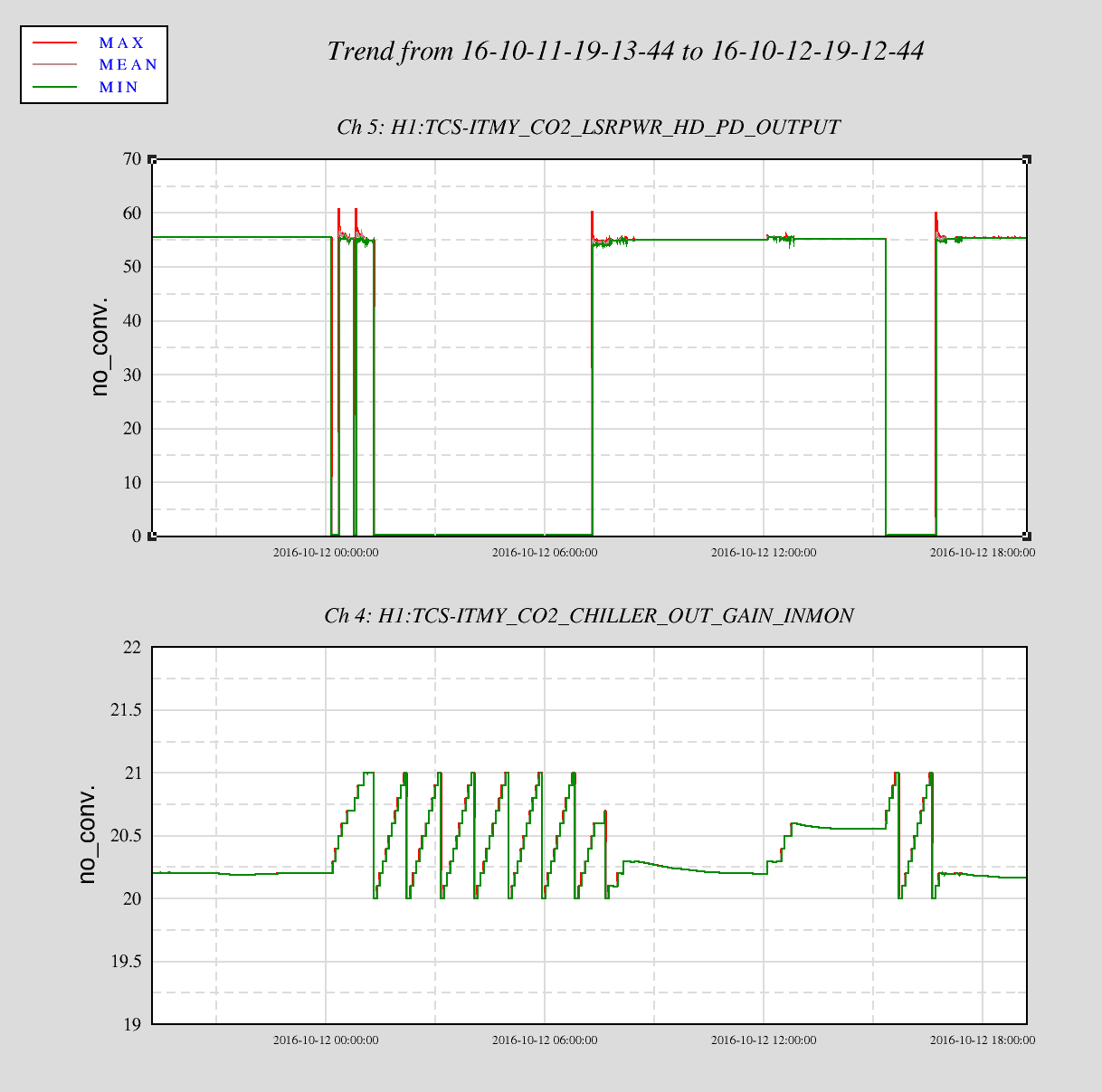

Lengthy details: Dave notcied TCSY chiller DAC output went crazy yesterday. After making sure that it wasn't the model update (alog30429, alog30384) that did it we investigated further. The crazy output to the chiller was due to TCS guardian trying to lock the laser when there were no laser (as the result the guadian keeps increasing and decrasing chiller temperature by about 1 deg C).

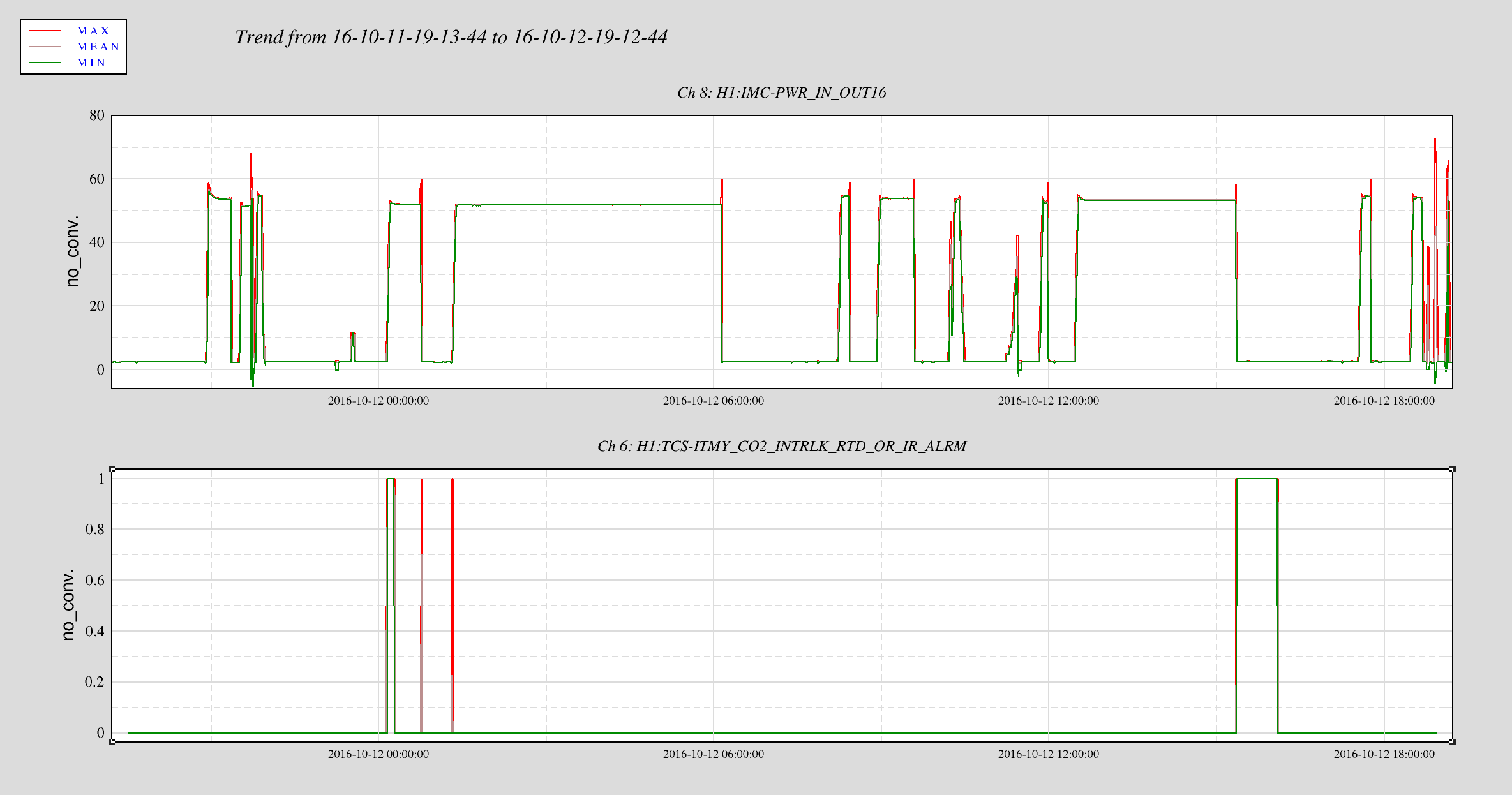

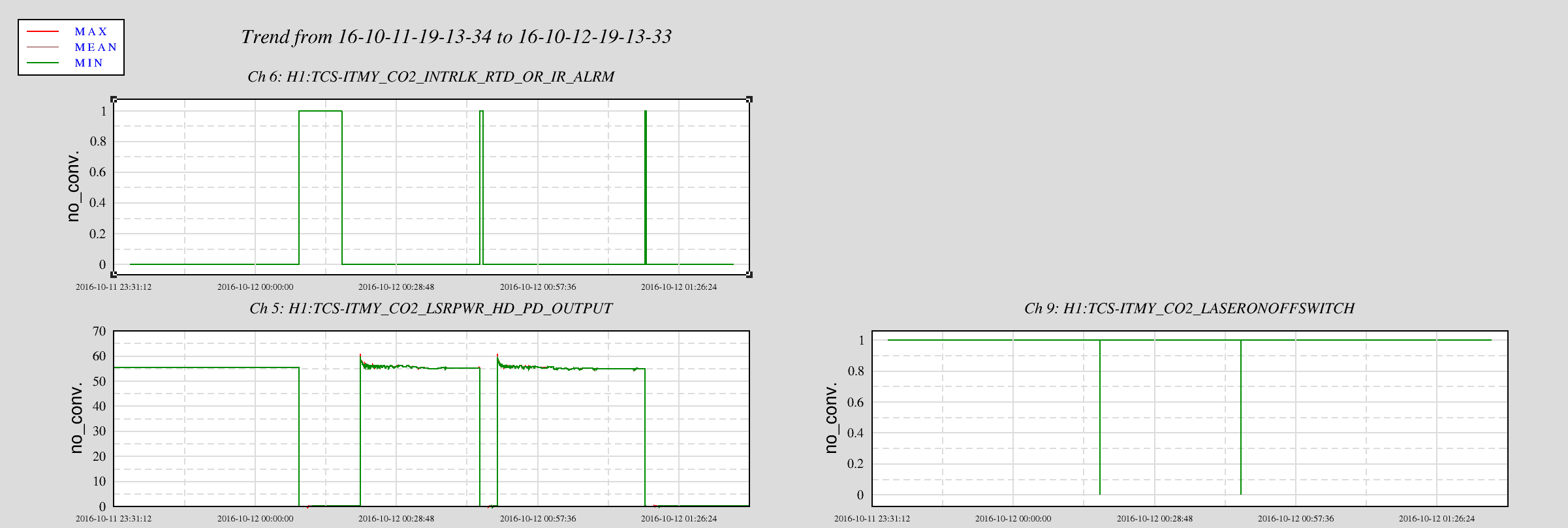

The cause of CO2 laser trips was due to RTD/IR ALARM interlock tripped, which always coincide with either power-up state and lockloss state. Although not every power-up or locklosses caused CO2Y to trip. We also looked at POP but it's not showing here.
This immediately made us think of the CO2Y rotation stage that would only move during these times. Could this be either Beckhoff or electronics issue? The fact that it actually tripped the interlock box made me think of grounding issue. But I always blame grounding.
Also Kiwamu was able to untrip the RTD/IR interlock and get the CO2 into "ready" state just by toggling LASER ON/OFF button. This is what we don't understand. How is this even possible?
The End.
Tried the new feedforward path, adding the DBB Q1Y signal to the DARM IN1 signal. It's working.

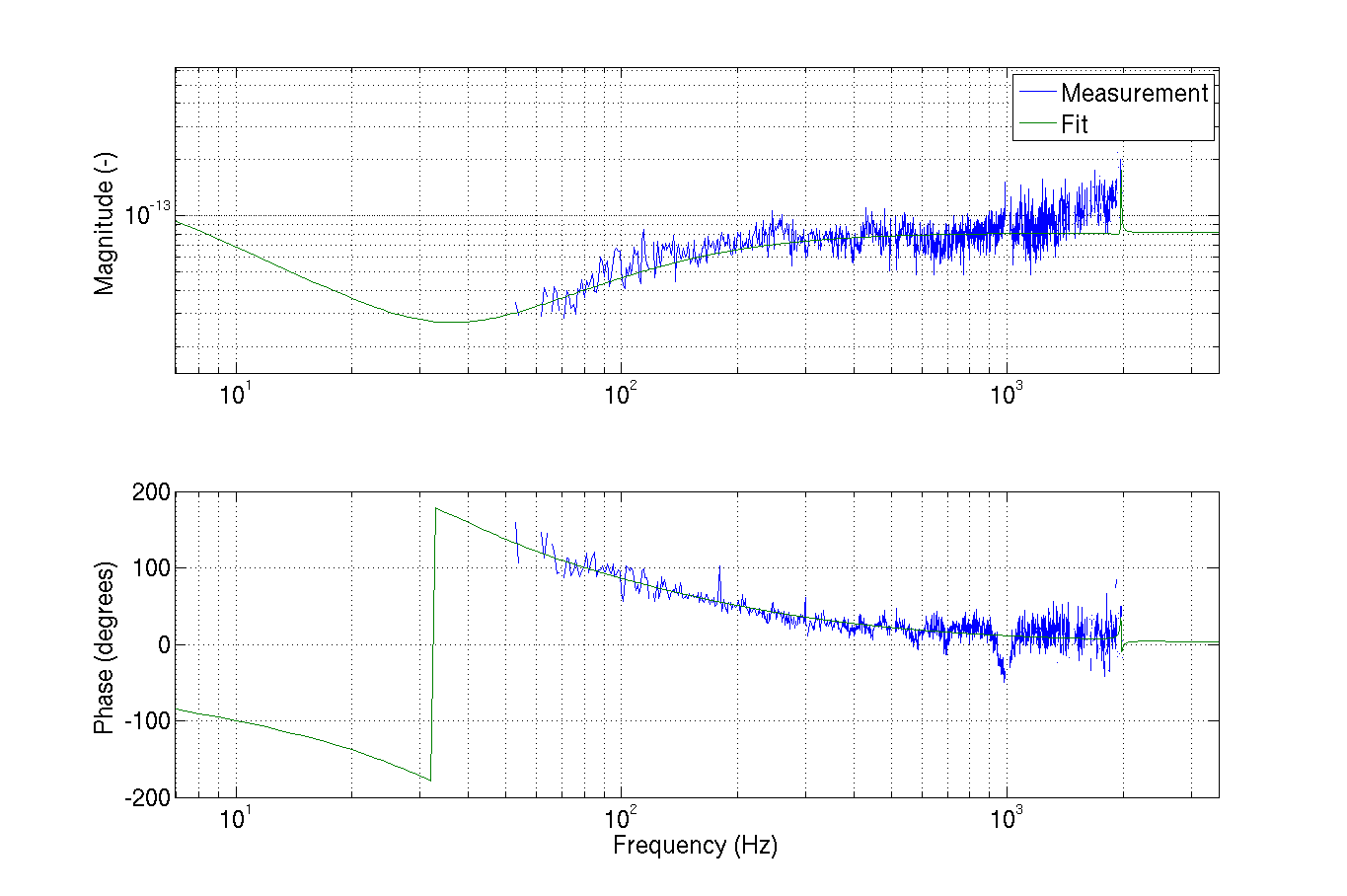

First, I measured the transfer function from Q1Y to DARM (no noise injection), and fitted it. The result is shown in the first figure (I removed from the fit the 2kHz sharp feature which is clearly a misfit artifact). The filter is implemented in the LSC-JITTERFF bank.

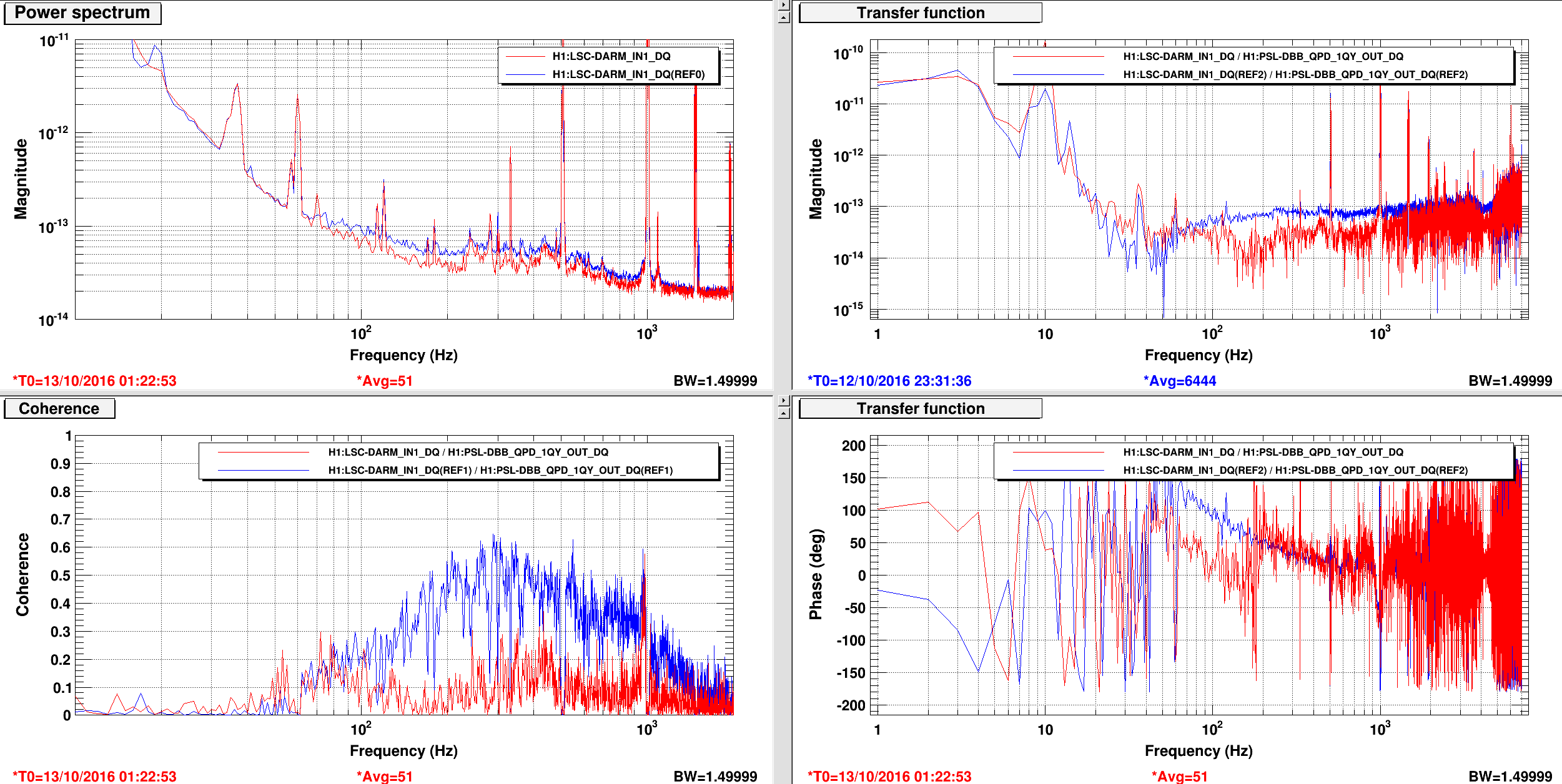

The second plot shows the improvement in the DARM signal and the reduction of coherence whe the feedforward is on (blue reference with FF off, red with FF on). All the peaks remaining in the DARM signal are not due to the HPO jitter.
We shall see how stable this is over time.

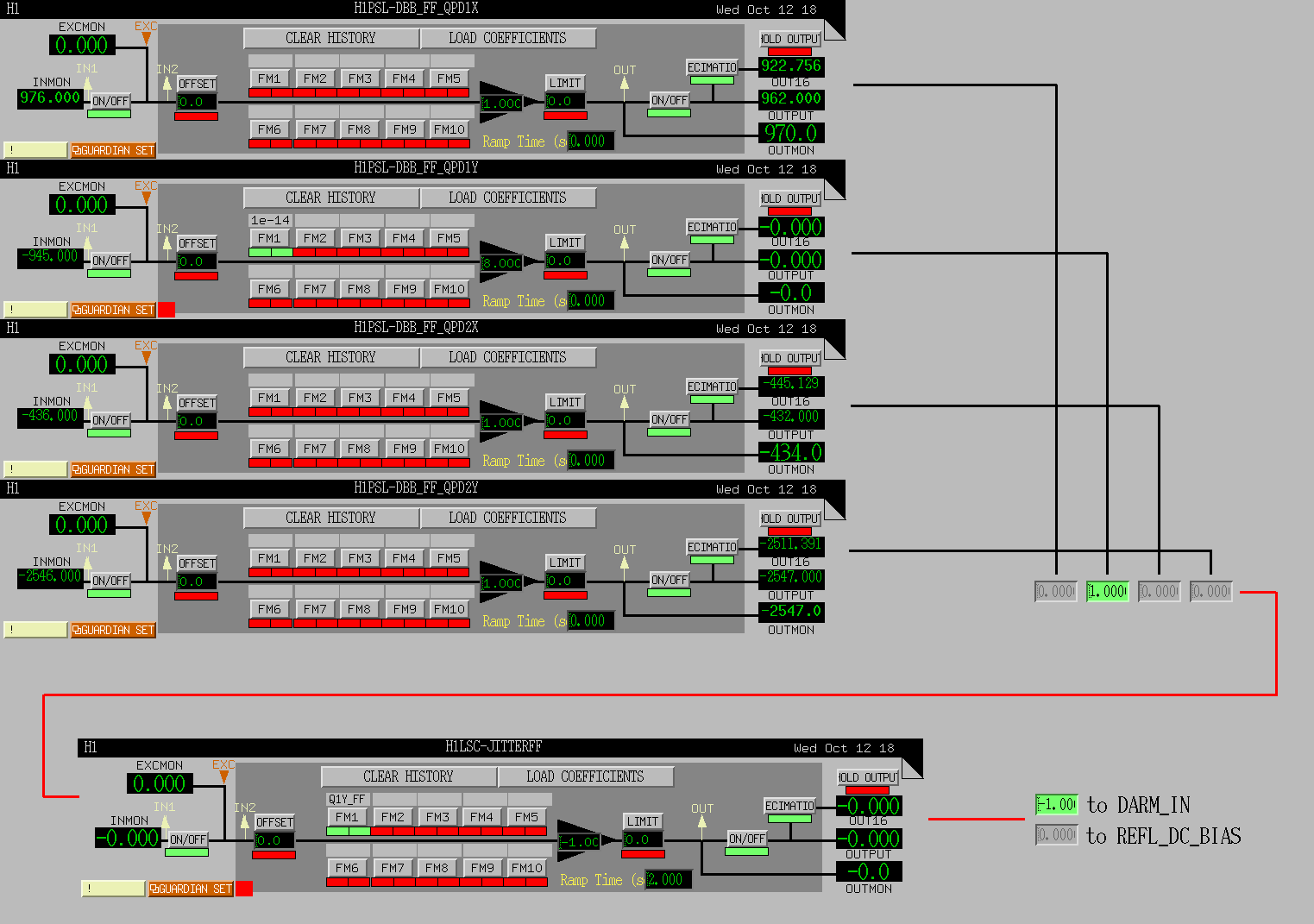

A temporary MEDM screen for the jitter feedforward can be found here
/opt/rtcds/userapps/release/isc/h1/medm/JITTER_DBB_FF.adl
It's been linked to the LSC menu in the sitemap.
The model modifications are described in 30412.
On Tuesday 11th October we installed the ITMX and ETMX hardware watchdog chassis (HWWD) in monitor mode, which completes the install of the four HWWD chassis.
Previously we had found that the ITMY HWWD reported LED-current-monitor undervoltages which were not been seen on ETMY. In the past 24 hours we have now seen similar events on ITMX, which suggests the longer cabling to the ITM systems may be a factor.

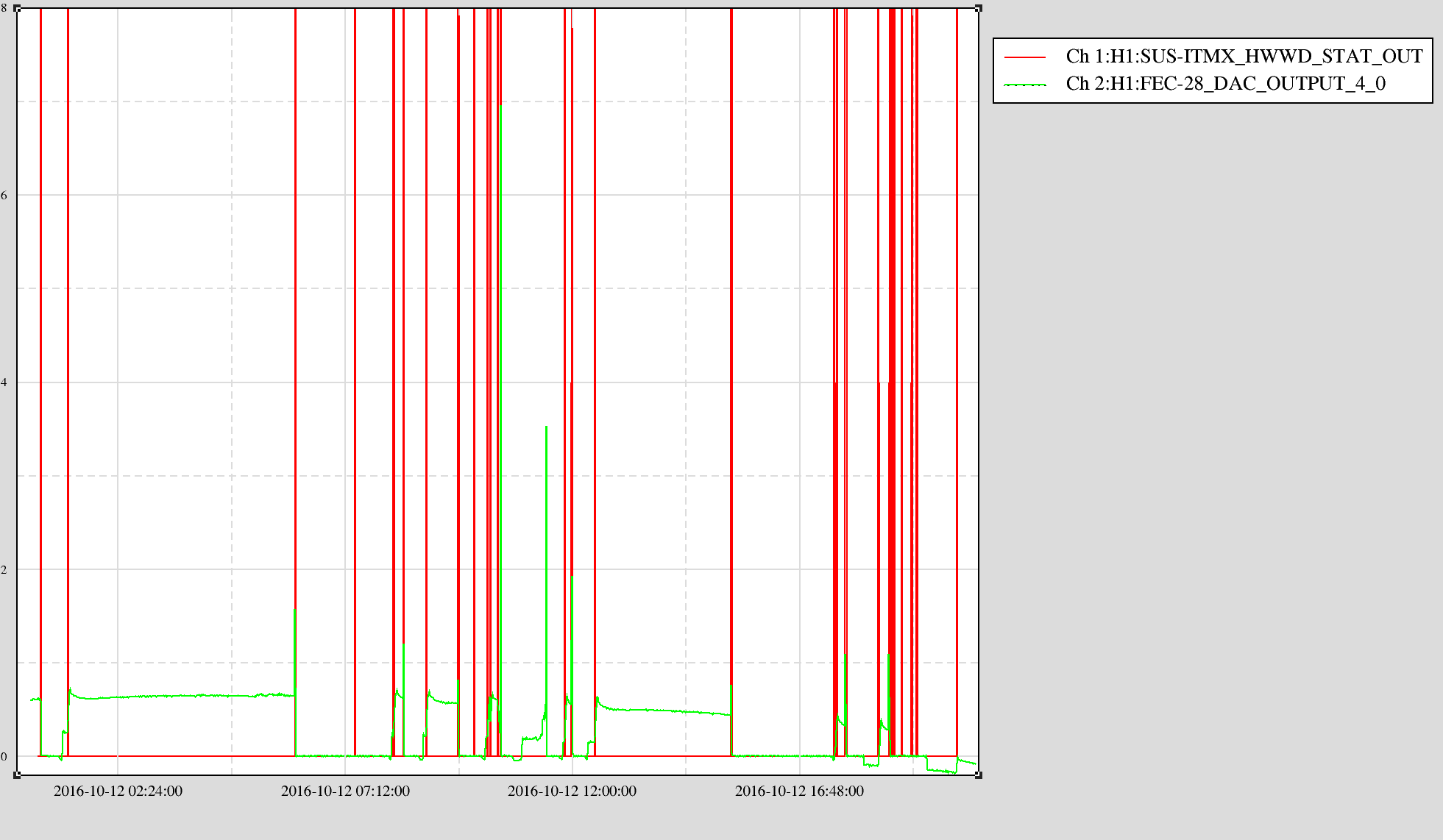

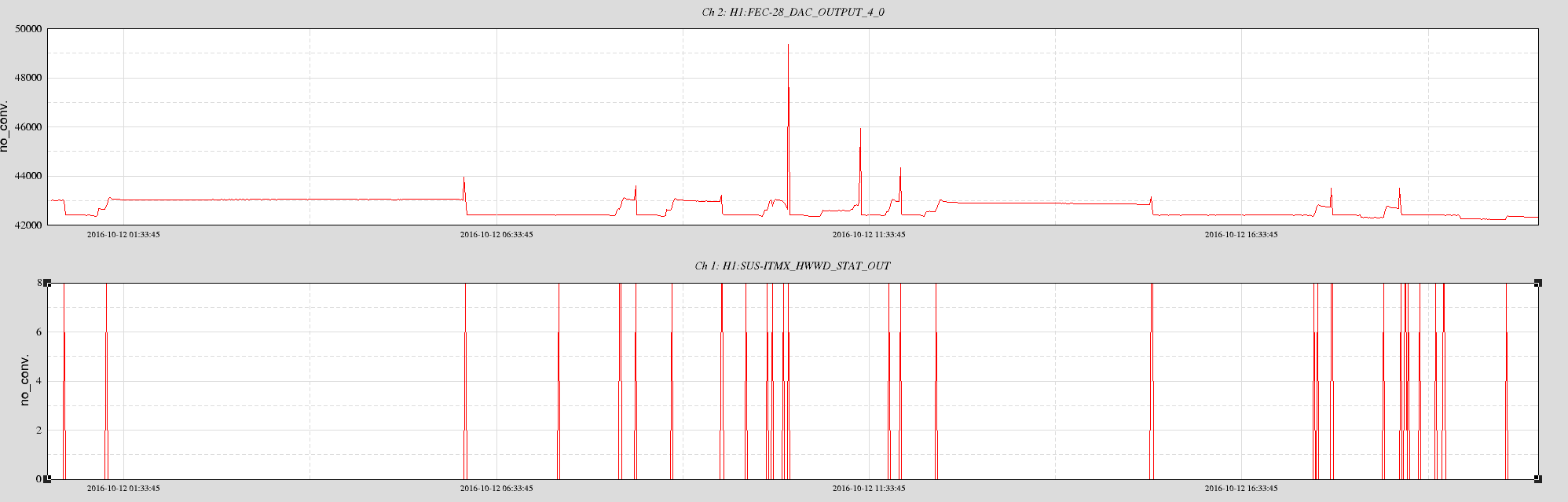

For the past 20 hours, I plotted the ITMX HWWD LED-current-monitor status against an OSEM coil drive signal (I chose top stage F1 as a representative example). There is a clear correlation between coil drive activity and the detection of a low voltage on the LED-current-monitor as seen by the HWWD (shows up as STAT_OUT = 8). I've attached two plots, one showing the two signals separately, on the other I have scaled the coil drive signal to a compatible Y-axis scale and plotted them together.
Hmm - perhaps current-loop would have been a better design given the long cables?
State of H1: locking, some issues with PI, with Tara's fix H1 is going to Nominal Low Noise
Assistance: Tara, Jenne, (Richard, Jason, earlier today)
NOTE: If TCSY tripps off, please call Kiwamu or Nutsinee before restarting, they are hunting errors, so need to see the system before restart
Activities:
Currently:
Not much IFO up time so far, but this morning I managed to move SRM in both pitch and yaw, and see a reduction of the noise. I recall this was already know. Moving pitch by about +20 urad seems to give the best position. Also the SRC1_P error signal respond quite well to the motion, and it seems to cross zero at the right position. Also, after SRM pitch is aligned, the SRC1_Y error signal repond to yaw motion of the SRM. So it looks like we should be able to close SRC1 both P and Y, although with small bandwidth.

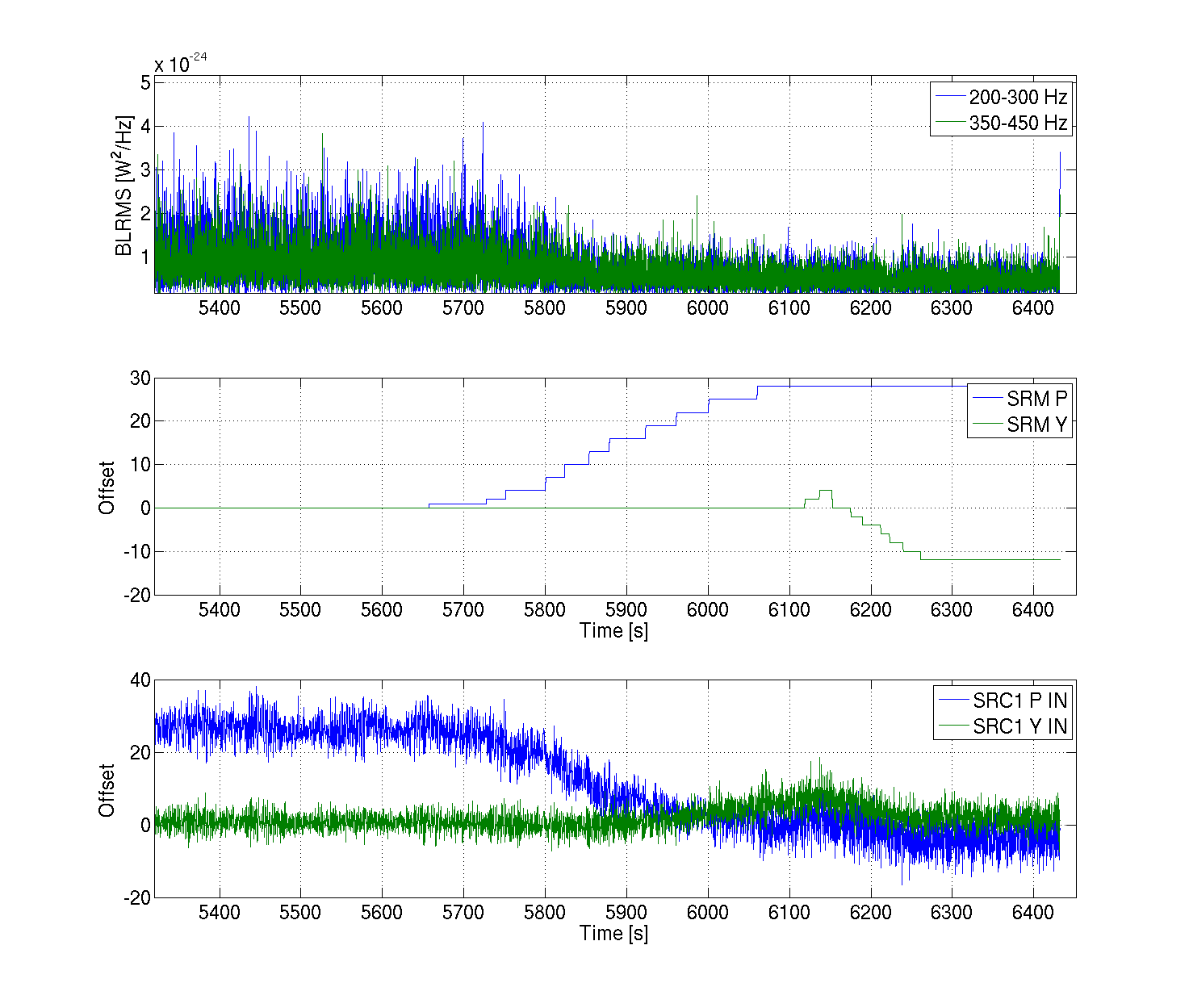

The attached plot shows:
For the record, SRC1's error signal is AS_A_45_I for both pitch and yaw at the times he's looking (it gets switched to this in the SRC_ASC_high_power state, since we were considering these as candidates earlier).

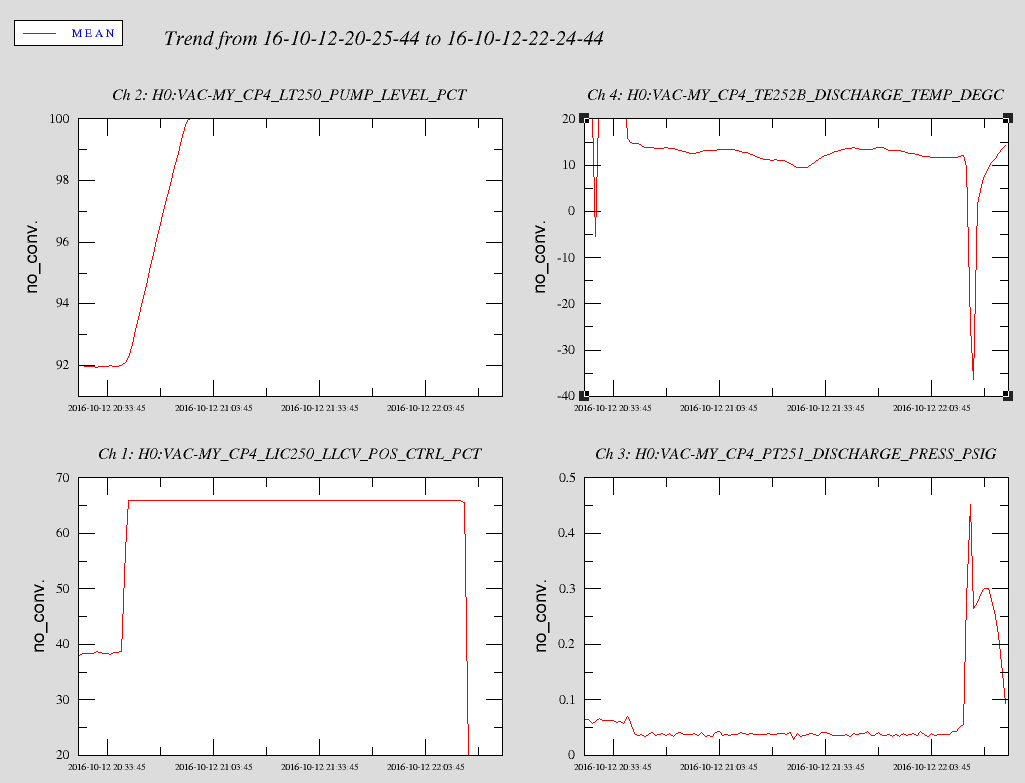

With new thermocouple installed inside vertical section of exhaust pipe, I overfilled CP4 today. TC registered LN2 with very little forewarning. Temp fell to -60 deg C with LN2 trickling out exhaust (bypass exhaust valve open and check valve removed).
[Jenne, Cheryl, Nutsinee]
We tweaked the calibration of the PSL rotation stage, which hadn't been done since the power incident on the rotation stage was adjusted about a week ago. Now hopefully a 50W request will give us 50W, rather than some higher value. Nutsinee has her script ready for next time, so we can try doing it automatically rather than by hand.
I have written a fitting script for PSL rotation stage calibration, and put it in ...../userapps/psl/h1/scripts/RotationStage/
First, run Nutsinee's script MoveRotationStage.py, which will move the rotation stage from -90deg to +90deg, in 5 degree steps, and record the measured angle and the power at the PSL periscope to a text file.
Then with Matlab, run CalibRotStage.m. This will load the data, calibrate it, and give you a plot with the fitted calibration parameters in the legend.
Finally, move those values to the PSL rotation stage's calibration screen.
Unfortunately though, when we use the LASER_PWR guardian to request 50W, we only get about 48W. This was true earlier with my hand-tuned calibration, as well as with the fits. This is something that could be looked into.
J. Kissel, D. Tuyenbayev We've grabbed another set of calibration measurements of the IFO's sensing function in order to build confidence in our newly commissioned front-end tracking of time dependent model parameters, and to confirm the discrepancy seen yesterday (LHO aLOG 30391) was not something funny about that lock stretch. Indeed the discrepancy remains. We've found bugs in our code that compares our DARM model against these measurements, so we can't yet confirm exact numbers like optical gain, DARM coupled cavity pole frequency, or SRC detuning spring frequency to offer a proposed change to the CAL-CS front-end parameters to fix it. We'll hopefully have something by tomorrow. Attached are screenshots of the measurements and the DARM loop parameters during the measurement. Timeline: (in UTC) 2016-10-12 01:30:00 -- IFO in stable Nominal Low Noise (PCALY calibration lines are ON); IFO undisturbed 01:46:00 -- IFO sufficiently thermalized to start measurements; PCALY lines turned OFF 01:47:48 -- PCAL2DARM measurement begins 02:05:48 -- DARM OLGTF measurement begins 02:24:00 -- measurements done; PCALY lines turned back ON; IFO undisturbed 02:40:00 -- Official Undisturbed period ends (but no one has done anything with the IFO since, up to 03:06 UTC) Data files (which are exported and committed to the SVN): /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER10/H1/Measurements/ DARMOLGTFs/2016-10-12_H1_DARM_OLGTF_4to1200Hz.xml PCAL/2016-10-12_H1_PCAL2DARMTF_4to1200Hz.xml
J. Kissel, D. Tuyenbayev,
These are kappas calculated in the front-end after the TF measurements have been completed.
The optical gain is still ~15% lower w.r.t. the value in the DARM model parameters and the coupled-cavity pole frequency is ~ 340-350 Hz, which is higher compared to the yesterday's value (LHO alog 30391).
There's still more noise in the calculated values of fC. The SNR of the 331.9 Hz line is affected by a slightly increased noise in the [0.2, 1.0] kHz band.
Doing the same thing as was done in LHO aLOG 30475, I've grabbed similar undisturbed data from the times quoted in the original entry, and replotted them in matlab after doing some rudimentary math. The 15 minute (900 sec) average value (starting at Oct 12 2016 02:39:00 UTC) for all of the time dependent parameters just after the sweeps are: Param Units Mean Std kappa_{C} [ ] 0.868 pm 0.01 f_{cc} [Hz] 325 pm 5.5 Re: kappa_{PU} [ ] 1.01 pm 0.0089 Im: kappa_{PU} [ ] 0.0007 pm 0.015 Re: kappa_{TST} [ ] 0.998 pm 0.011 Im: kappa_{TST} [ ] -0.010 pm 0.0091 Input Power [W] 51.8 pm 0.029 The script to generate these values lives in /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER10/H1/Scripts/CAL_EPICS/get_fe_tdep_params.m

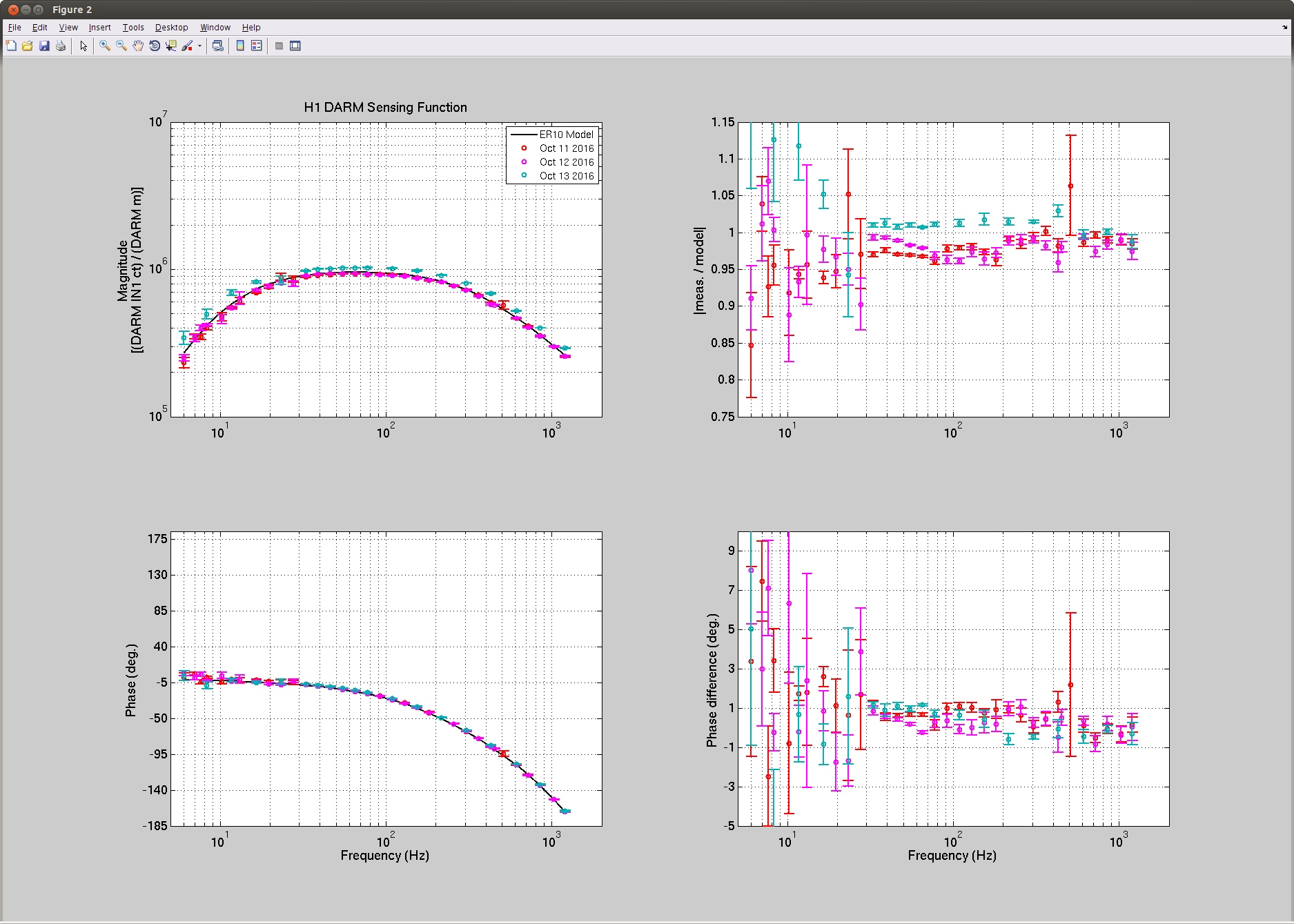

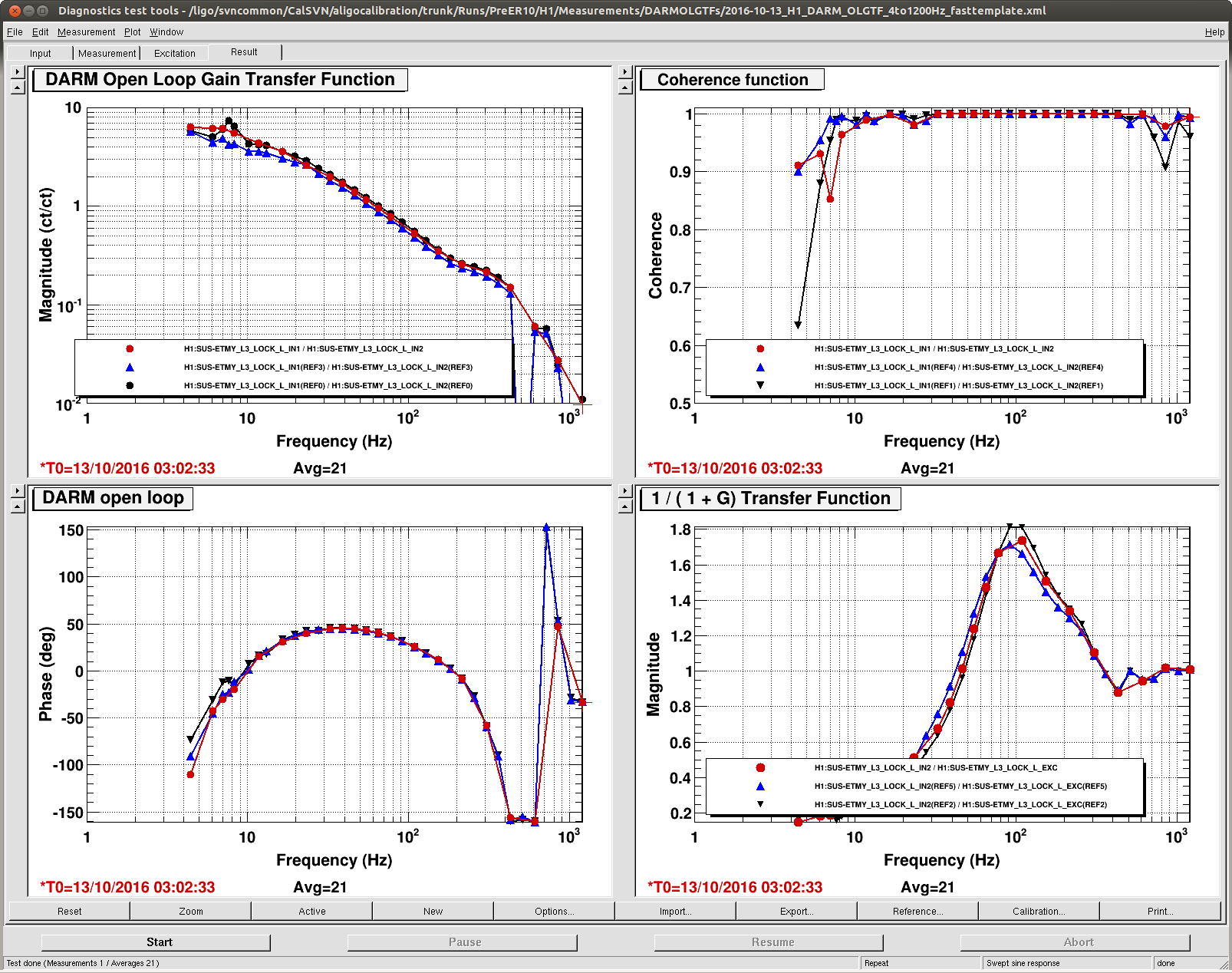

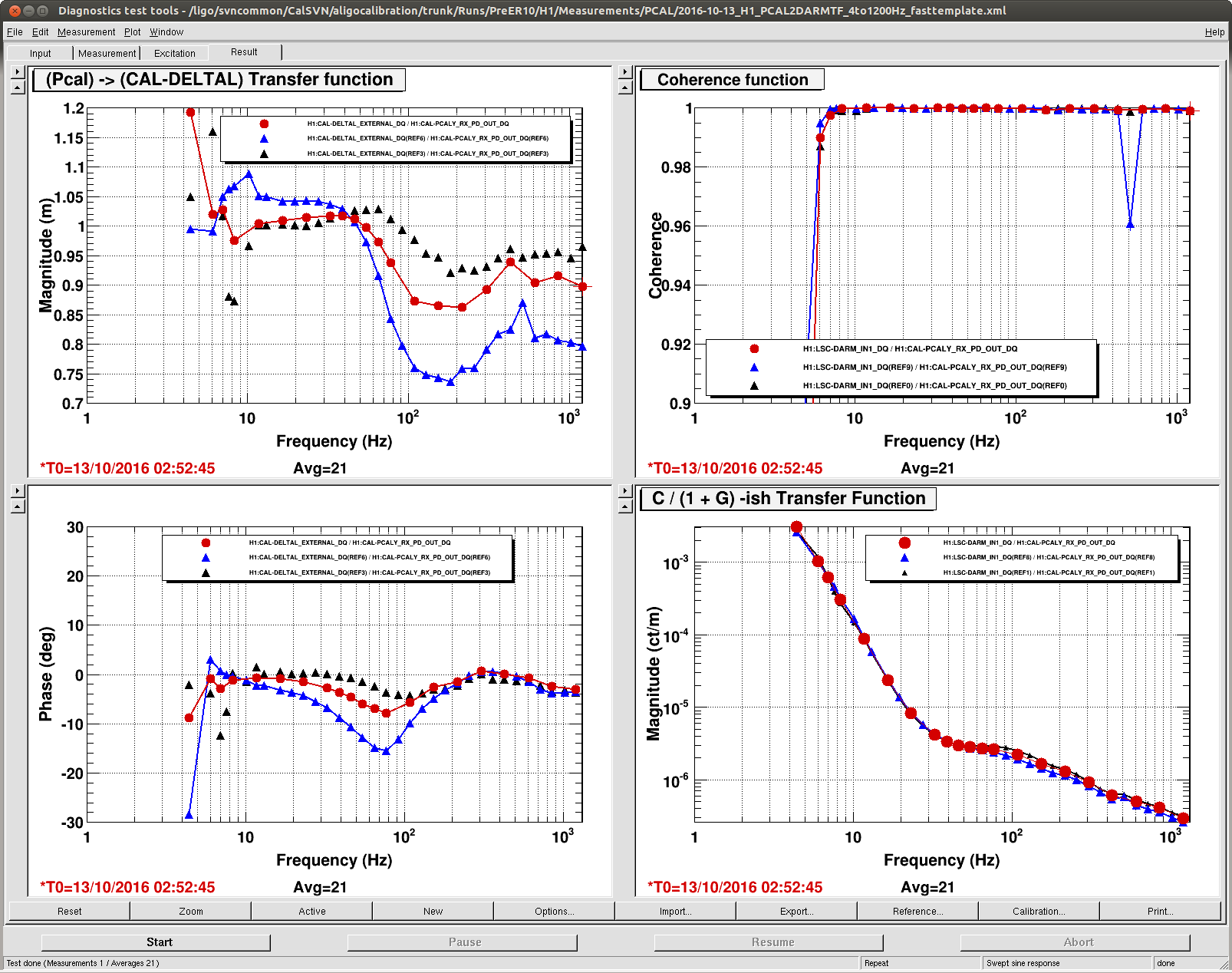

J. Kissel I've used Kiwamu's templates (LHO aLOG 29860) to gather new DARM OLG and PCAL2DARM transfer functions, to help increase the number of data points for darm coupled cavity pole and SRC detuning spring frequencies. In doing so, I've found that PCAL suggests that CAL-DELTAL_EXTERNAL is wrong low by ~20% above 50 Hz, in a frequency dependent fashion (confirmed by the phase and ridiculously high coherence). We will analyze the data in-full, and report what the measured pole and spring frequencies are in the morning. We'll also show trends of calibration line heights, such that eventually we can confirm the frequencies over time. This frequency dependent error in CAL-DELTAL_EXTERNAL may be because the DARM coupled cavity pole frequency programmed into the CAL CS fron end is 342 Hz, and that's just not correct for this lock stretch. We have to turn OFF the PCALY calibration lines during the measurement due to range issues, but the front end calculation of the DARM cavity pole, after the measurement, suggests anywhere for 315 Hz to 340 Hz. Unclear whether we can trust the online calculation just yet, so we're leaving the IFO alone for ~30 minutes after the measurement to be able to confirm offline later. Recall that we're still not controlling the cavity waist angle/translation of the SRC entirely: the SRC1 loop (nominally controlling SRM alone) is OFF, but the SRC2 loop (controlling SRM and SR2) is ON. Undisturbed time post-sweeps: Start Oct 11 2016 02:36:00 UTC Oct 10 2016 19:36:00 PDT 1160188577 Stop Oct 11 2016 03:07:00 UTC Oct 10 2016 20:07:00 PDT 1160190437 The new measurements have not yet been exported, but have been committed to the CalSVN here: /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER10/H1/Measurements/ DARMOLGTFs/2016-10-10_H1_DARM_OLGTF_4to1200Hz.xml PCAL/2016-10-10_H1_PCAL2DARMTF_4to1200Hz.xml EDIT: I've added two screenshots showing the digital settings relevant to the DARM loop parameters. Unfortunately, the production conlog is down for maintenance/upgrades, but thankfully Patrick setup a test bed a few nights ago (goto http://conlog-test-replica/), I was able to pull the list of channels I needed. FAlso for the record, some of those channels have changed since O1, so I quote the new list here for easier copy and paste in the future: H1:LSC-DARM1_SWSTAT H1:LSC-DARM1_GAIN H1:LSC-DARM2_SWSTAT H1:LSC-DARM2_GAIN H1:SUS-ETMY_L1_LOCK_L_SWSTAT H1:SUS-ETMY_L1_LOCK_L_GAIN H1:SUS-ETMY_L1_DRIVEALIGN_L2L_SWSTAT H1:SUS-ETMY_L1_DRIVEALIGN_L2L_GAIN H1:SUS-ETMY_L2_LOCK_L_SWSTAT H1:SUS-ETMY_L2_LOCK_L_GAIN H1:SUS-ETMY_L2_DRIVEALIGN_L2L_SWSTAT H1:SUS-ETMY_L2_DRIVEALIGN_L2L_GAIN H1:SUS-ETMY_L3_ISCINF_L_SWSTAT H1:SUS-ETMY_L3_ISCINF_L_GAIN H1:SUS-ETMY_L3_LOCK_L_SWSTAT H1:SUS-ETMY_L3_LOCK_L_GAIN H1:SUS-ETMY_L3_DRIVEALIGN_L2L_SWSTAT H1:SUS-ETMY_L3_DRIVEALIGN_L2L_GAIN H1:SUS-ETMY_L3_LOCK_INBIAS H1:SUS-ETMY_L3_ESDOUTF_LIN_BYPASS_SW H1:SUS-ETMY_L3_ESDOUTF_LIN_FORCE_COEFF H1:SUS-ETMY_BIO_M0_STATEREQ H1:SUS-ETMY_BIO_L1_STATEREQ H1:SUS-ETMY_BIO_L2_UL_STATEREQ H1:SUS-ETMY_BIO_L2_LL_STATEREQ H1:SUS-ETMY_BIO_L2_UR_STATEREQ H1:SUS-ETMY_BIO_L2_LR_STATEREQ H1:SUS-ETMY_BIO_L3_UL_STATEREQ H1:SUS-ETMY_BIO_L3_UR_STATEREQ H1:SUS-ETMY_BIO_L3_LL_STATEREQ H1:SUS-ETMY_BIO_L3_LR_STATEREQ
J. Kissel, D. Tuyenbayev,
Kappas calculated in the front-end suggest that an optical gain was lower compared to the reference time (optical gain in the DARM model) by ~15% and the coupled-cavity pole frequency was ~325 Hz at the TF measurement time.
Also it seems that the SNR of 331.9 Hz line is not sufficient - higher statistical noise in the calculated κC and fC.
A little bit more quantitative assessment if the time dependent correction factors as computed by the front end (or "kappas"):
I've grabbed similar undisturbed data from the times quoted in the original entry, and replotted them in matlab after doing some rudimentary math. The 15 minute (900 sec) average value (starting at Oct 11 2016 02:51:00 UTC) for all of the time dependent parameters just after the sweeps are:
Param Units Mean Std
kappa_{C} [ ] 0.866 pm 0.011
f_{cc} [Hz] 323 pm 4.5
Re: kappa_{PU} [ ] 1.01 pm 0.011
Im: kappa_{PU} [ ] -0.007 pm 0.012
Re: kappa_{TST} [ ] 0.998 pm 0.0085
Im: kappa_{TST} [ ] 0.0095 pm 0.0065
Input Power [W] 50.5 pm 0.031
The script to generate these values lives in
/ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER10/H1/Scripts/CAL_EPICS/get_fe_tdep_params.m
And for ease of copy and paste for someone in the future, I'm gathering the following channels (which correspond to the parameters in the same order as the table above)
H1:CAL-CS_TDEP_KAPPA_C_OUTPUT
H1:CAL-CS_TDEP_F_C_OUTPUT
H1:CAL-CS_TDEP_KAPPA_PU_REAL_OUTPUT
H1:CAL-CS_TDEP_KAPPA_PU_IMAG_OUTPUT
H1:CAL-CS_TDEP_KAPPA_TST_REAL_OUTPUT
H1:CAL-CS_TDEP_KAPPA_TST_IMAG_OUTPUT
H1:IMC-PWR_IN_OUTPUT
Evan, Daniel
17:12:30 UTC Oct 7 2016:
17:16:30 UTC Oct 7 2016:
17:18:30 UTC Oct 7 2016:
17:24:30 UTC Oct 7 2016:
17:32:00 UTC Oct 7 2016:
17:34:30 UTC Oct 7 2016:
18:06:30 UTC Oct 7 2016:
Spectra attached.
Coherence (modulation on)
Using 2600 V/W for the demod gain and transimpedance, and 29 mW of dc PD power, this implies the following AM depths:
| I | Q | |
| 9 MHz | 0.95×10−4 | 2.4×10−4 |
| 45 MHz | 1.9×10−4 | 8.2×10−4 |
Using 0.22 rad and 0.28 rad for the 9 MHz and 45 MHz modulation depths, this implies the following AM/PM ratios:
| I | Q | |
| 9 MHz | 0.43×10−3 | 1.1×10−3 |
| 45 MHz | 0.67×10−3 | 2.9×10−3 |
The attachment contains a budget of the expected CARM residual. The in-loop error point is taken from the CM board control signal, as was done previously. Here I used 2600 V/W for the transimpedance and demod gain.
The other measured traces are taken from the REFL9I readback (not from the CM board), so in principle there could be some extra dark noise at the error point from the summing node board or CM board. However, based on the O1 level this is of the same order as the shot noise (so we are not missing a huge amount of extra noise in this estimate).
Attaching earlier RAM plot, this time with informative labels
Here is a time series of REFL LF during the modulation depth reductions that happen during lock acquistion.
During the 9 MHz depth reduction (from 0.22 rad to 0.11 rad), the dc power changes from 4.83(3) mW to 4.27(3) mW. That means that after the modulation depth reduction, 4.08(4) mW of the dc light is from the carrier and 0.19(2) mW of the dc light is from the 9 MHz sideband (this assumes the 45 MHz contribution is negligible).
Note that the dc level is still settling to its final value of ~3.7 mW, so it's possible that these power ratios are evolving during the lock.
